A hose ferrule is a small but vital component in hydraulic systems. It ensures that hoses stay securely connected to fittings, preventing leaks and system failures. In this article, we will explore the role of hose ferrules, their types, and how to choose the right one. You'll also learn how to properly install and maintain them for optimal performance.

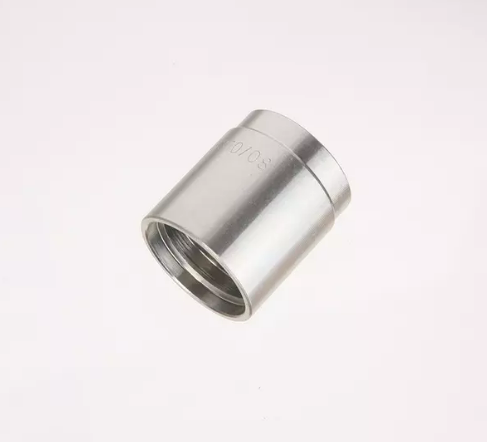

A hose ferrule is a cylindrical metal sleeve that is crimped onto the end of a hose to secure it to a fitting. This process ensures that the hose remains tightly connected and prevents any leakage. The ferrule is typically made from durable materials such as steel, brass, or stainless steel, chosen based on the application’s specific needs. In essence, a hose ferrule ensures that the hose does not detach or leak under pressure, making it an integral part of many fluid transmission systems.
The main purpose of a hose ferrule is to create a secure and permanent connection between a hose and its fitting. Once crimped, the ferrule forms a tight seal, preventing any fluid from escaping. This is especially important in hydraulic systems, where high pressure is often involved, and even a small leak can lead to system failure.
Hose ferrules are crucial in ensuring the safe and efficient operation of fluid transfer systems. They act as a seal between the hose and fitting, keeping the system airtight and preventing leaks. In systems where high-pressure fluid is transferred, such as in hydraulic machines or heavy equipment, a hose ferrule plays a key role in preventing leaks that could cause system failures or damage. Without a proper hose ferrule, a hydraulic system would not be able to withstand the pressures it was designed for, potentially leading to catastrophic failures.
Furthermore, hose ferrules help maintain the integrity of the entire system. By securely clamping the hose to the fitting, they ensure that the fluid flows without interruptions, ensuring the system operates at peak performance.

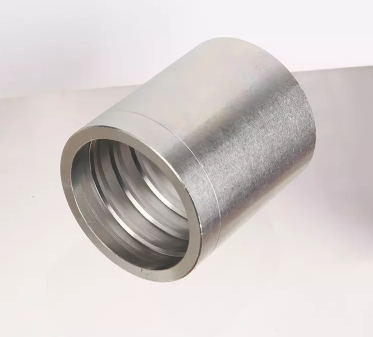

Standard hose ferrules are widely used across various industries. These ferrules are designed to work with a variety of hoses, providing a reliable and leak-proof connection. The most common materials used for standard hose ferrules include steel, stainless steel, and brass. Steel ferrules are typically used for higher pressure applications, while brass ferrules are often selected for lighter-duty systems.
In general, standard hose ferrules are used in low to medium-pressure systems, where the demands on the connection are not as extreme. They provide a solid and secure fit, making them suitable for applications in automotive, industrial, and agricultural sectors.
While standard hose ferrules are sufficient for many applications, specialized ferrules are necessary for more demanding environments. These include ferrules designed for high-pressure systems, quick-connect applications, or harsh chemical environments. Some of the common specialized hose ferrules include hydraulic rings, quick-connect ferrules, and flange rings.
Hydraulic rings are typically used in high-pressure systems and offer excellent durability and resistance to wear. Quick-connect ferrules are ideal for systems that require frequent connection and disconnection, such as in mobile equipment or machinery. Flange rings are often used in piping systems where a secure, leak-proof connection is necessary.
The material selection for hose ferrules is critical in determining their performance and lifespan. Common materials used include:
● Steel: Strong and durable, steel ferrules are often used in systems that require high-pressure resistance and durability.
● Stainless Steel: Known for its corrosion resistance, stainless steel ferrules are ideal for environments where the ferrule may be exposed to moisture, chemicals, or high temperatures.
● Brass: Brass is a popular choice for applications that require resistance to corrosion but at lower pressure levels.
● Composite Materials: For specialized applications, composite materials may be used to offer additional benefits like lightweight properties or chemical resistance.
Each material offers distinct advantages depending on the working environment and application, and selecting the right material ensures the longevity and functionality of the hose ferrule.

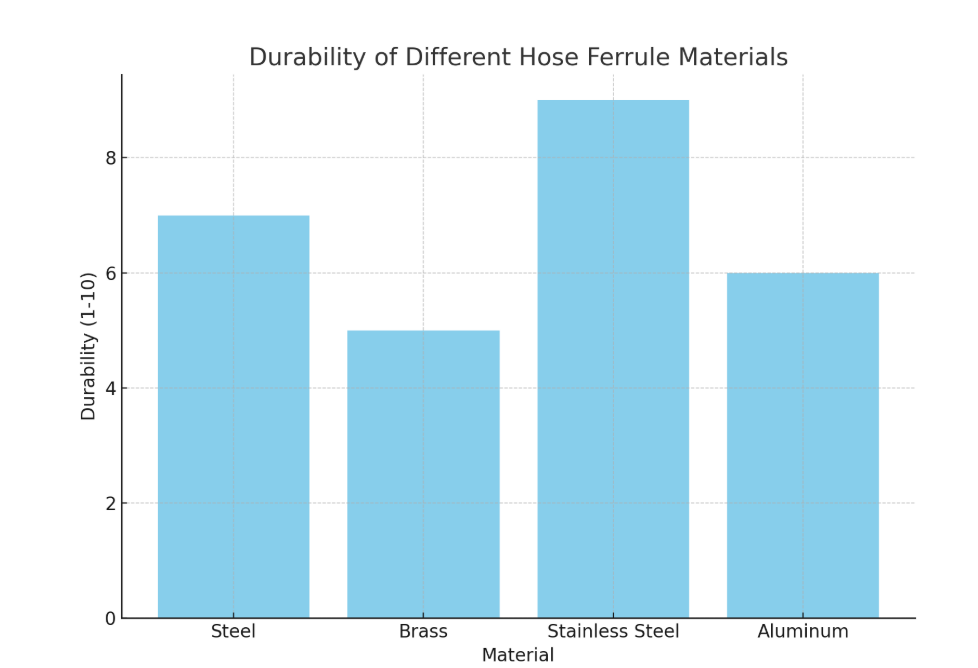

Material | Characteristics | Common Applications |
Steel | Strong, durable, cost-effective | High-pressure systems |
Stainless Steel | Corrosion-resistant, high temperature resistant | Chemical processing, wet environments |
Brass | Low corrosion resistance, lightweight | Low-pressure systems, pneumatic applications |
Aluminum | Lightweight, lower pressure capacity | Low-pressure, non-demanding systems |
The choice of material for hose ferrules directly impacts their ability to perform under specific conditions. For instance, stainless steel ferrules offer superior resistance to corrosion, making them perfect for use in industries such as chemical processing, where exposure to aggressive chemicals is common. On the other hand, brass ferrules may be used in lighter, less demanding applications like low-pressure air systems or fuel lines.
For high-temperature environments, materials that can withstand heat, such as stainless steel or specially coated alloys, are preferred. The material’s strength, resistance to corrosion, and ability to maintain its structural integrity under pressure all influence the ferrule’s performance.
Hose ferrules are typically installed using a crimping process, where the ferrule is compressed onto the hose using a crimping machine. The crimping process ensures that the ferrule forms a tight, permanent seal around the hose and the fitting. This is crucial because it prevents leaks by providing a solid, leak-proof connection. The compression forces the ferrule to tightly grip the hose, securing it in place and preventing any fluid from escaping.
The proper crimping of a hose ferrule is critical for ensuring that the connection is secure and the system is free from leaks. If the ferrule is not properly crimped, it could lead to a weak connection that may fail under pressure.
A properly installed hose ferrule ensures that the connection can withstand the high pressures that many hydraulic systems are subjected to. The crimping process creates a seal that is resistant to pressure, preventing the hose from detaching from the fitting. This is particularly important in hydraulic systems, where even a small leak can lead to significant problems, including fluid loss and potential damage to machinery.
Hose ferrules are designed to withstand high levels of pressure, and their sealing ability is essential for maintaining the overall efficiency of the system. In some cases, the ferrules are also designed to work with specific pressure ranges, so it is important to choose the right ferrule for the system’s needs.
When selecting a hose ferrule, several key factors must be taken into account:
● Hose Size: The ferrule must match the diameter of the hose to ensure a tight fit.
● Material Compatibility: The material of the ferrule should be compatible with the material of the hose and the type of fluid being transferred.
● Working Pressure: The ferrule must be able to withstand the pressure of the system. It is important to choose a ferrule rated for the specific pressure of your system to ensure safety.
● Temperature Range: Some ferrules are better suited for high-temperature environments, while others are designed for lower temperatures.
Considering these factors ensures that the ferrule will perform reliably under the operating conditions of the system.
One of the most common mistakes when choosing a hose ferrule is selecting the wrong size. A ferrule that is too small or too large for the hose can result in leaks or a weak connection. Another mistake is selecting the wrong material. If the ferrule material is incompatible with the hose material or the fluid being transported, it could lead to premature wear or failure.
Always ensure that the ferrule is compatible with the specific requirements of your system to avoid these issues.
Mistake | Consequence | How to Avoid it |
Incorrect size matching | Leakage, reduced performance | Measure the hose and ferrule carefully |
Material incompatibility | Corrosion, failure under pressure | Choose material based on system conditions |
Using a reusable ferrule | Leakage, safety risk | Always use a new ferrule when assembling |
Poor crimping technique | Weak connections, leaks | Use proper crimping tools and techniques |
To install a hose ferrule properly, follow these steps:
1. Measure and Cut the Hose: Use a hose cutter to ensure a clean, straight cut.
2. Slide the Ferrule onto the Hose: Place the ferrule onto the hose before inserting the fitting.
3. Insert the Fitting: Push the hose fitting into the hose until it is fully seated.
4. Crimp the Ferrule: Use a hydraulic crimping tool to compress the ferrule around the fitting.
5. Inspect the Connection: Check that the crimp is tight and even, with no visible gaps.
Proper installation is key to ensuring that the hose ferrule performs as expected and that the system remains leak-free.
For successful crimping, ensure that the crimping tool is properly calibrated and that the ferrule is aligned correctly before applying pressure. Misalignment can result in an uneven crimp, which may lead to leaks. Additionally, always follow the manufacturer’s guidelines for crimping force to avoid under or over-crimping.
Hose ferrules are essential for securing leak-proof connections in fluid transfer systems. Proper selection, installation, and maintenance are crucial for system safety and efficiency. Understanding different types, materials, and installation processes ensures smooth operation. Choosing the right hose ferrule for your system’s needs is key to preventing leaks and failures. Taizhou Haodema Machinery CO., LTD. offers high-quality hose ferrules that ensure reliable performance in various industries.
A: A hose ferrule is a metal sleeve that secures a hose to a fitting, ensuring a leak-proof connection in hydraulic and pneumatic systems.
A: A hose ferrule ensures that hoses are securely attached to fittings, preventing leaks and maintaining system integrity under pressure.
A: Hose ferrules are installed by crimping them onto the hose using a crimping machine, ensuring a tight, secure connection.
A: Hose ferrules are typically made from steel, stainless steel, or brass, depending on the application and environmental conditions.
A: Choose a hose ferrule based on the hose size, material compatibility, and the working pressure and temperature of your system.
A: No, hose ferrules are designed for one-time use. Once crimped, they should not be reused to maintain system safety.
