Hydraulic systems rely on fittings to connect hoses securely, ensuring fluid flows without leaks. Among the most commonly used fittings are JIS (Japanese Industrial Standard) and JIC (Joint Industry Council). Although they may seem similar, these fittings have key differences that affect their performance and compatibility in hydraulic systems.
Understanding these differences is crucial for selecting the right fitting to maintain system efficiency and safety. In this article, we’ll explore the distinctions between JIS and JIC hose fittings, focusing on their standards, flare angles, thread types, sealing methods, and typical applications.
JIS hose fittings are designed according to Japanese Industrial Standards (JIS), which were established to create uniformity in manufacturing across Japan. These fittings follow the JIS B8363 standard, which specifies the dimensions and tolerances for hose fittings in hydraulic systems. JIS fittings are used predominantly in industries where Japanese machinery and equipment are common, particularly in heavy construction, agriculture, and industrial machinery. These fittings often use metric threads and feature a 30-degree flare angle, which differentiates them from other types of fittings.
JIC hose fittings, on the other hand, are defined by the Joint Industry Council (JIC) standards. These fittings are primarily used in North America and adhere to the SAE J514 and MIL-DTL-18866 standards. The JIC fitting is commonly found in hydraulic systems across various industries, such as aerospace, automotive, and heavy machinery. JIC fittings typically use UNF (Unified National Fine) threads and a 37-degree flare angle, which allows for a more robust connection, particularly in high-pressure systems.

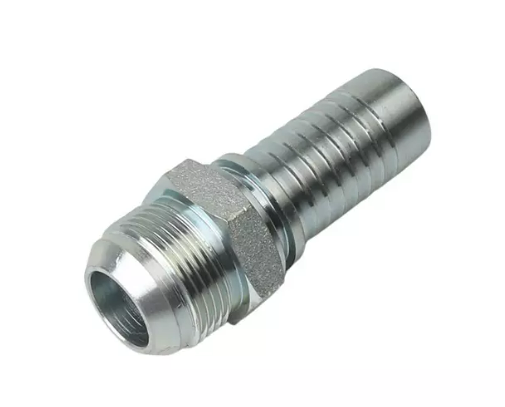

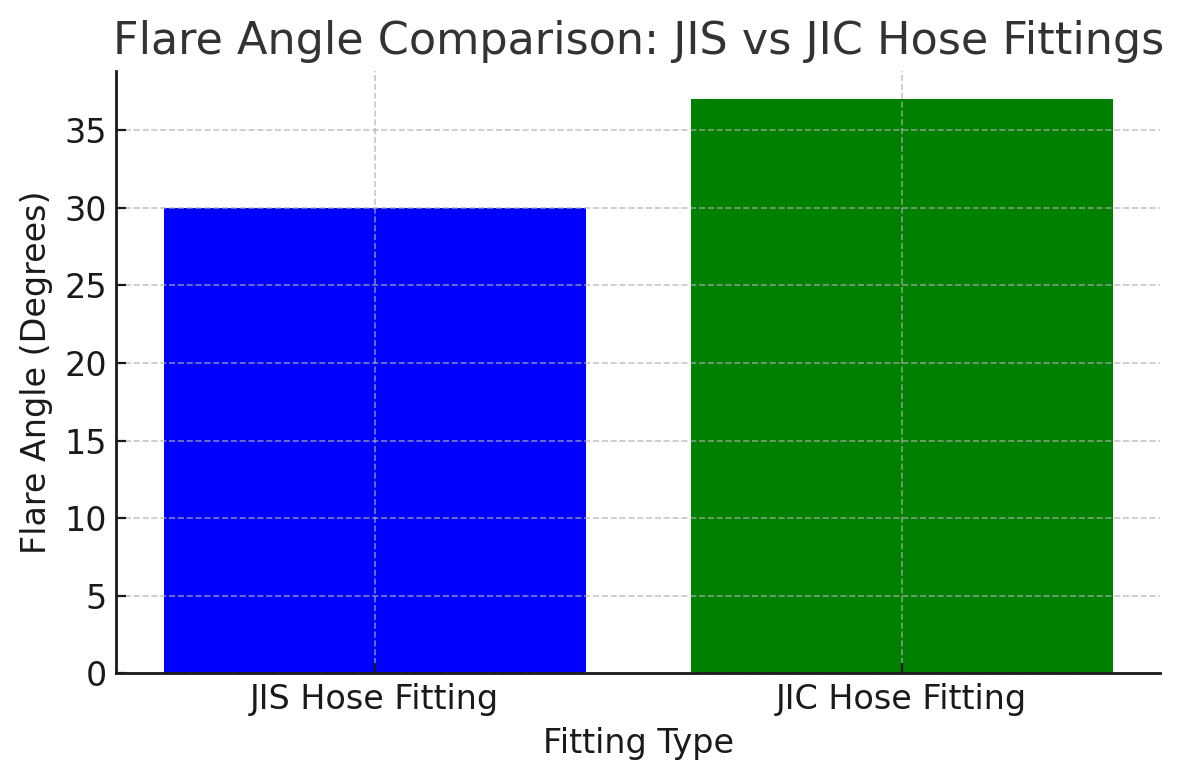

One of the most notable differences between JIS and JIC hose fittings is the flare angle. JIS fittings feature a 30-degree flare angle, while JIC fittings use a 37-degree flare angle. The flare angle is a critical element in how the fittings seal. The 30-degree flare on JIS fittings creates a less steep seat than the 37-degree flare on JIC fittings, affecting the sealing performance. The steeper flare angle in JIC fittings is better suited for high-pressure environments, offering a tighter seal. This is why JIC fittings are often preferred in systems where high pressure is common, such as in aerospace or automotive applications.
The thread types used in JIS and JIC fittings are another key difference. JIS fittings typically use metric threads, while JIC fittings use UNF threads. This difference in thread type means that JIS and JIC fittings are not compatible with each other. The thread sizes, pitch, and design are distinct, making it impossible to interchange the two without risking leaks or failure in the hydraulic system. Therefore, it’s important to select the correct fitting based on your system’s thread specifications to maintain a secure, leak-proof connection.
The sealing methods employed by JIS and JIC hose fittings also differ. JIS fittings are designed to form a seal using a 30-degree flare, while JIC fittings use a 37-degree flare seating surface. The flare angle influences how effectively the fitting can seal the joint between the hose and the fitting. JIC fittings, with their 37-degree flare, create a more robust seal, making them ideal for high-pressure environments. JIS fittings, while still reliable, are generally used in lower-pressure systems, such as those found in certain Japanese industrial machines.
Feature | JIS Hose Fitting | JIC Hose Fitting |
Flare Angle | 30 degrees | 37 degrees |
Thread Type | Metric threads | UNF threads |
Common Use | Lower-pressure applications | High-pressure applications |
Regional Use | Japan and regions with similar standards | North America and international markets |
Sealing Mechanism | Metal-to-metal seal with 30-degree flare | Metal-to-metal seal with 37-degree flare |
JIS hose fittings are commonly used in heavy equipment and machinery, particularly in industries that rely on Japanese-made equipment. These fittings are integral to the hydraulic systems in construction machinery, agricultural vehicles, and industrial equipment. The 30-degree flare design and metric threading make JIS fittings well-suited for use in regions that adhere to Japanese industrial standards. The widespread use of JIS fittings in machinery from brands originating in Japan and Korea ensures smooth operation and maintenance of these systems, particularly in sectors such as construction and manufacturing.
JIC hose fittings, with their 37-degree flare angle and UNF threads, are widely used across North America and in various industries globally. They are especially common in high-pressure systems and are often found in industries such as aerospace, automotive, and manufacturing. The strength and durability of JIC fittings make them ideal for systems that require tight seals under high pressure, ensuring reliability and safety in demanding environments. Their popularity extends beyond North America, as the standards for JIC fittings are internationally recognized and widely adopted.
Industry | JIS Hose Fitting | JIC Hose Fitting |
Construction | Used in Japanese heavy machinery | Not typically used |
Automotive | Used in some Japanese automotive systems | Widely used in North American vehicles |
Aerospace | Rarely used | Common in aerospace systems |
Agriculture | Used in agricultural machinery in Japan | Not typically used |
Mining | Common in Japanese mining equipment | Often used in North American mining equipment |
Both JIS and JIC fittings are made from durable materials such as steel, brass, and stainless steel. These materials are chosen for their resistance to corrosion, high strength, and suitability for high-pressure environments. Stainless steel, in particular, is favored for its superior corrosion resistance, especially in applications exposed to harsh chemicals or extreme weather conditions. Both JIS and JIC fittings are designed to withstand the wear and tear of hydraulic systems, offering long-lasting performance and minimizing the need for frequent replacements.
Pressure tolerance is another important factor when considering JIS and JIC fittings. JIC fittings, due to their 37-degree flare angle and UNF threads, are built to withstand higher pressure levels than JIS fittings. This makes JIC fittings the preferred choice for high-pressure hydraulic systems, such as those in aerospace, automotive, and heavy-duty machinery. The design of JIC fittings ensures leak prevention even under extreme conditions. On the other hand, while JIS fittings are durable and capable of handling moderate pressure systems, they are not suitable for the same high-pressure environments as JIC fittings.
Choosing the right hose fitting for your hydraulic system requires an understanding of your system’s pressure rating, thread size, and the materials used. If your system operates in a high-pressure environment, JIC fittings are typically the best option due to their ability to maintain a leak-proof seal under pressure. Conversely, JIS fittings are a good choice for lower-pressure systems commonly found in Japanese or Korean equipment.
When selecting between JIS and JIC fittings, the key factors to consider include the flare angle, thread type, pressure rating, and compatibility with your existing system. JIC fittings are ideal for high-pressure systems, while JIS fittings are commonly used for applications that follow Japanese industrial standards. It’s important to check the specifications of your equipment and system requirements before making a selection to ensure that the fitting will provide a secure, leak-free connection.
In conclusion, understanding the differences between JIS and JIC hose fittings is crucial for selecting the right components for hydraulic systems. The variations in flare angles, thread types, and sealing mechanisms make these fittings non-interchangeable. JIC fittings, with their 37-degree flare and UNF threads, are suited for high-pressure systems, while JIS fittings, commonly used in Japan, are designed for lower-pressure applications. By recognizing these differences, you can ensure compatibility and optimize your system's performance. Always consider equipment specifications and system requirements when choosing between JIS and JIC fittings. For reliable, high-quality fittings, Taizhou Haodema Machinery CO., LTD. offers durable solutions that enhance your hydraulic system's efficiency.
A: A JIS Hose Fitting follows the Japanese Industrial Standards (JIS) and is commonly used in Japanese machinery. It has a 30-degree flare and metric threads, ensuring a secure connection in hydraulic systems.
A: A JIC Hose Fitting adheres to the Joint Industry Council (JIC) standards. It features a 37-degree flare and UNF threads, making it ideal for high-pressure applications commonly found in North American systems.
A: No, JIS and JIC Hose Fittings cannot be used interchangeably due to differences in flare angles and thread types. Using the wrong fitting can result in leaks or system failure.
A: JIS Hose Fittings are predominantly used in industries with Japanese machinery, such as construction, automotive, and heavy equipment manufacturing in Japan and other regions with similar standards.
A: JIC Hose Fittings, with their 37-degree flare, are better suited for high-pressure systems, while JIS Hose Fittings are typically used for lower-pressure applications in hydraulic systems.
A: When choosing between JIS and JIC Hose Fittings, consider factors like pressure requirements, thread types, and flare angles to ensure compatibility with your hydraulic system.
