JIS hose fittings are vital in hydraulic systems where durability and secure fluid connections are crucial. Primarily used in Japan, these fittings are also common in regions with similar industrial standards. In this article, we will explore the unique features of JIS hose fittings and how they compare to other fitting types like JIC.
A JIS hose fitting is a type of hydraulic fitting designed according to the Japanese Industrial Standards (JIS), which are established to ensure consistency and safety in various mechanical systems. JIS fittings, particularly JIS B8363, outline the specifications for these components, including their dimensions, thread types, and sealing mechanisms. These standards ensure that the fittings are reliable and safe for use in high-pressure systems, especially in machinery where secure, leak-free connections are crucial.
JIS hose fittings are widely used in industries such as construction, agriculture, and automotive manufacturing, where machinery requires durable, high-performance hydraulic components. These fittings are commonly found in various equipment types, including heavy-duty machinery and hydraulic systems used in industrial operations.
Industry | Application Example |
Construction | Hydraulic systems in heavy equipment |
Automotive | Fluid transfer in car manufacturing |
Agriculture | Irrigation and machinery hydraulic systems |
Industrial Equipment | Hydraulic machinery in factories |
One of the standout features of JIS hose fittings is their 30-degree flare angle. This design is essential for creating a tight, leak-resistant seal between the fitting and the hydraulic hose. When the fitting is tightened, the 30-degree flare angle allows the two surfaces to make optimal contact, ensuring that no fluid can escape, even under high-pressure conditions. This is particularly important in industries where leaks can lead to system failures, operational downtime, or even safety hazards.
The 30-degree flare design of JIS fittings is optimized for stability and pressure handling. It provides a secure connection that prevents any pressure drops or fluid leakage, which is crucial in hydraulic systems where maintaining pressure is key to system performance. This flare angle also enhances the fitting's durability, making it suitable for use in a variety of heavy-duty applications such as construction and manufacturing equipment.

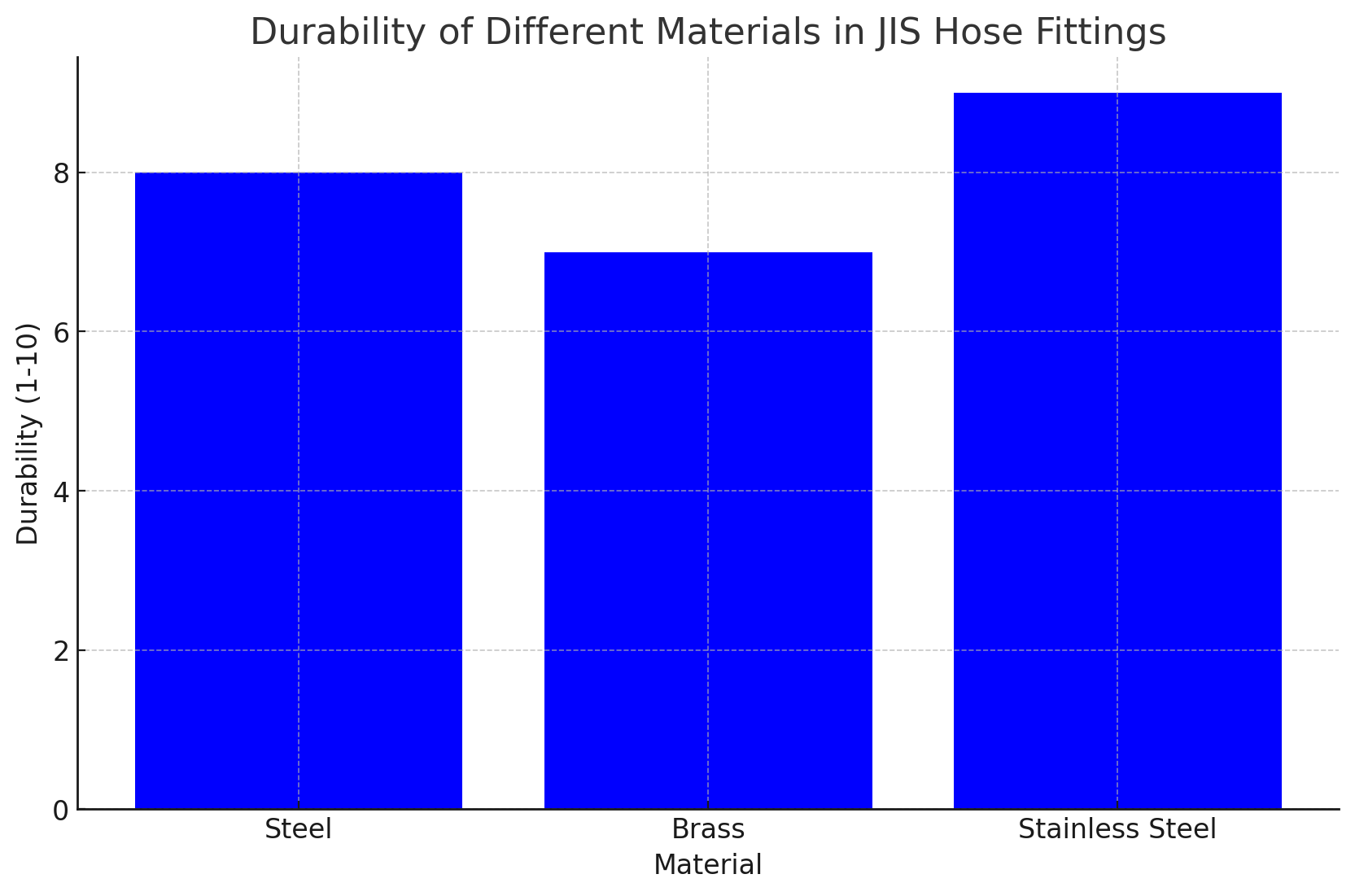

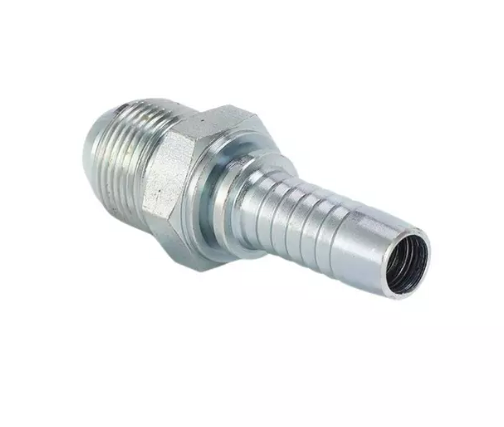

JIS hose fittings are known for their exceptional durability, largely due to the materials used in their construction. They are often made from high-strength materials such as steel, brass, and stainless steel. These materials are selected not only for their strength but also for their resistance to corrosion, making JIS fittings highly suitable for use in harsh environments.
The materials used in JIS hose fittings ensure their longevity and reduce the need for frequent maintenance or replacements, ultimately leading to cost savings for businesses. These durable materials help maintain the integrity of hydraulic systems, preventing leaks and failures that could lead to costly repairs or downtime. The superior material choice makes JIS hose fittings an excellent investment for any hydraulic system requiring a reliable and long-lasting solution.
Material | Characteristics |
Steel | Durable, commonly used in high-pressure systems |
Brass | Corrosion-resistant, ideal for various environments |
Stainless Steel | Excellent resistance to rust and wear |

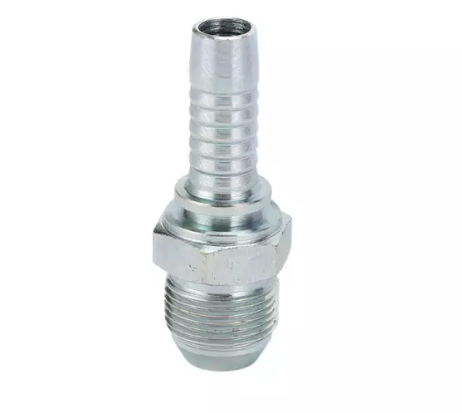

The 30-degree flare connection in JIS fittings is designed to ensure a leak-free, secure seal. When the fitting is tightened, the flare angle allows the two surfaces to make full contact, providing a metal-to-metal seal. This type of connection is essential in hydraulic systems where high pressure and fluid integrity are critical for the safe and efficient operation of machinery.
JIS fittings are designed to integrate seamlessly with hydraulic systems, but they are also compatible with other types of fittings when appropriate adapters are used. While JIS fittings use metric threads, which are standard in Japan and several other countries, they can also work with systems that use different thread types, such as BSP or JIC fittings, with the help of the right adapters.
The flare angle is a significant difference between JIS and JIC fittings. JIS fittings use a 30-degree flare angle, which is slightly smaller than the 37-degree flare angle commonly found in JIC fittings. This difference in flare angle affects the way the fittings seal and connect to hydraulic hoses. The JIS flare angle is designed to provide a tight seal, but in systems requiring higher pressure tolerance, JIC fittings may offer a more secure connection due to their larger flare angle.
Another key distinction between JIS and JIC fittings is the thread type. JIS fittings use metric threads, whereas JIC fittings use UNF (Unified National Fine) threads. This difference in threading makes the fittings non-interchangeable, meaning that using JIS fittings in systems designed for JIC fittings could result in improper connections and potential leaks. It's essential to choose the correct fitting based on the system requirements to avoid issues with compatibility.
Feature | JIS Hose Fitting | JIC Hose Fitting |
Flare Angle | 30 degrees | 37 degrees |
Thread Type | Metric | UNF |
Common Use | Hydraulic systems in Japan | Hydraulic systems in North America |
Interchangeability | Not interchangeable | Not interchangeable |
Material | Steel, Brass, Stainless Steel | Steel, Stainless Steel |
JIS hose fittings are known for their ability to maintain secure, leak-free seals under high-pressure conditions. The 30-degree flare angle, combined with durable materials, ensures that these fittings can withstand the demands of hydraulic systems, preventing leaks and ensuring the safe operation of machinery.
Using JIS hose fittings can help reduce maintenance costs over time. Due to their durable materials and secure sealing mechanism, these fittings are less likely to fail under pressure, minimizing the need for frequent repairs or replacements. As a result, hydraulic systems using JIS fittings tend to be more reliable and cost-effective in the long run.
JIS hose fittings are particularly well-suited for heavy equipment used in construction and industrial applications. Their precision and durability ensure that they can handle the demanding conditions of machinery in these industries, where downtime due to fitting failure can be costly and disruptive.
Benefit | Description |
Leak Prevention | Ensures secure seals under high-pressure conditions |
Durability | Made from corrosion-resistant materials like steel and brass |
Cost-Effectiveness | Reduces maintenance costs by offering long-term reliability |
High-Pressure Tolerance | Ideal for hydraulic systems in demanding industries |
When selecting JIS hose fittings, it's essential to consider the material and pressure rating of the fitting. The material should be chosen based on the operating environment of the hydraulic system, with steel, brass, and stainless steel being common options. Additionally, the pressure rating of the fitting should match the requirements of the system to ensure it can handle the forces exerted during operation.
Before purchasing JIS fittings, it's crucial to verify that they are compatible with your existing hydraulic system. This includes ensuring that the fitting's thread type, size, and flare angle align with the system's specifications. If the system requires a different fitting type, consider using adapters to ensure compatibility and prevent leaks.
Understanding JIS hose fittings is crucial for maintaining hydraulic systems, especially in high-pressure applications. Their 30-degree flare angle and durable materials ensure leak prevention and reliability. Professionals can optimize performance by choosing the right material, pressure rating, and ensuring compatibility. Taizhou Haodema Machinery CO., LTD. offers high-quality JIS hose fittings that provide excellent value and reliability for various industries.
A: A JIS Hose Fitting is a hydraulic fitting designed according to Japanese Industrial Standards (JIS), ensuring reliable connections in hydraulic systems.
A: JIS Hose Fittings use a 30-degree flare angle that creates a leak-free, secure seal when tightened, ensuring optimal performance in high-pressure systems.
A: JIS Hose Fittings are durable, corrosion-resistant, and provide secure, leak-free connections, making them ideal for heavy-duty hydraulic systems.
A: JIS Hose Fittings use a 30-degree flare angle, while JIC fittings use a 37-degree flare. The thread types also differ, making them non-interchangeable.
A: JIS Hose Fittings are widely used in industries such as construction, automotive, and agriculture, where hydraulic systems are critical.
A: Yes, JIS Hose Fittings are cost-effective due to their durability and the long-term savings they provide by reducing the need for frequent replacements.
