BSP adapters, or British Standard Pipe adapters, are essential in fluid transfer systems. They ensure secure, leak-proof connections, especially in hydraulic, plumbing, and gas distribution systems. These adapters connect components with different thread types or sizes, offering versatility and reliability.
In this article, we will explore what BSP hydraulic adapters are, how they work, and why they are crucial in maintaining system integrity. You will also learn about their different types, applications, and key considerations when selecting the right adapter for your needs.
A BSP adapter is a fitting designed to connect two parts that have different thread types or sizes, using British Standard Pipe (BSP) threads. The BSP threads are commonly found in fluid systems, with two main types: BSPP (British Standard Pipe Parallel) and BSPT (British Standard Pipe Tapered). BSP adapters allow you to join pipes, hoses, or equipment that have mismatched thread types, ensuring a reliable and leak-free connection.
BSPP threads are used in low-pressure systems where a sealing mechanism like O-rings or gaskets can create a tight seal. In contrast, BSPT threads are tapered, allowing them to form a more secure and permanent connection suitable for high-pressure applications. BSP adapters facilitate the seamless integration of components with varying thread types, making them an essential part of many systems.
There are several types of BSP adapters, each designed for specific applications. Some of the most common types include male-to-female adapters, straight adapters, and elbow adapters.
● Male-to-Female BSP Adapters: These are designed to connect male-threaded pipes to female-threaded components. They are the most common type used in fluid systems where one component has male threads, and the other has female threads.

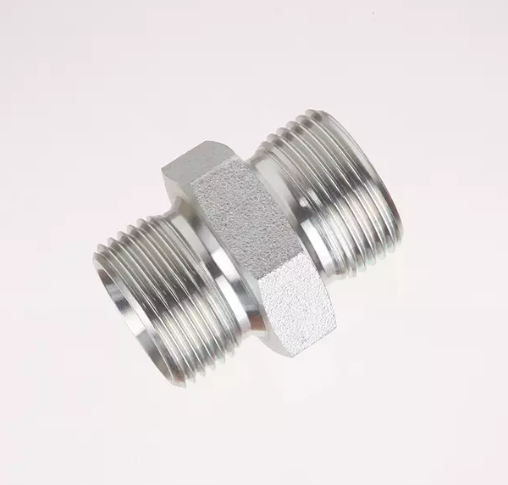

● Straight BSP Adapters: These adapters are used to connect two components in a straight line. They are typically used in systems where the flow direction does not need to change.

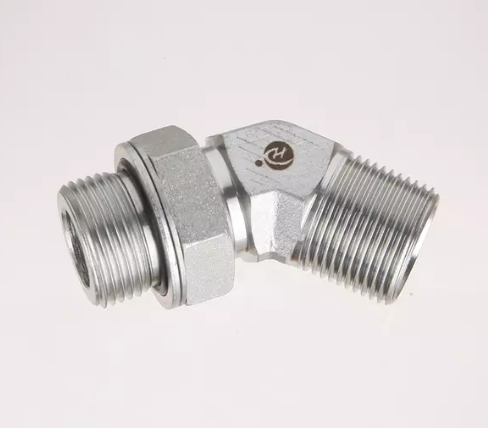

● Elbow BSP Adapters: These adapters are used when the system requires a change in direction, such as 90-degree or 45-degree angles. They help guide the flow of fluid around obstacles or into different configurations.
These BSP adapters come in various materials, including stainless steel, brass, and carbon steel, to meet the needs of different environments and pressures.
BSP threads are available in two main types: BSPP and BSPT. Each type serves a different purpose depending on the application requirements.
● BSPP Threads: These threads are parallel, meaning they have a constant diameter along their length. BSPP threads are ideal for low-pressure systems where components need to be easily assembled and disassembled. Sealing in BSPP threads is achieved using external sealing elements, such as O-rings or gaskets, making them suitable for reusable connections. These are commonly used in plumbing systems or fluid transfer systems where frequent maintenance or reassembly is necessary.
● BSPT Threads: BSPT threads are tapered, with the diameter becoming smaller toward the end of the thread. This taper helps create a tight seal as the components are tightened, making BSPT threads ideal for high-pressure and permanent applications. The seal is formed without the need for additional sealing elements, but in some cases, thread sealants or tape may be used to enhance the connection. BSPT threads are commonly found in hydraulic systems, gas distribution networks, and high-pressure fluid transfer applications.
The key difference between BSPP and BSPT threads is the sealing mechanism and their suitability for different pressure levels. BSPP is perfect for systems requiring ease of disassembly, while BSPT excels in situations where a secure, permanent connection is needed.
Feature | BSPP (Parallel Threads) | BSPT (Tapered Threads) |
Thread Design | Parallel, constant diameter | Tapered, narrows towards the end |
Sealing Mechanism | O-rings or gaskets for sealing | Seal created by thread taper |
Best Use Case | Low-pressure systems, reusable | High-pressure systems, permanent seal |
Common Applications | Fluid transfer, plumbing | Hydraulic systems, gas lines |
BSP threads are designed to ensure compatibility across a wide range of piping and equipment components. When properly matched, BSP adapters create secure, leak-free connections that are essential in maintaining system efficiency. The threads are engineered to meet the specific dimensions outlined in British Standard Pipe specifications, which makes them reliable for use in various industries worldwide.
Ensuring compatibility between BSP threads is crucial. If the threads are mismatched—such as using BSPP fittings with BSPT threads—the connection may fail, leading to leaks or system breakdowns. Proper selection of thread types and materials, along with careful installation, ensures the integrity of the piping system.
BSP hydraulic adapters are designed to ensure leak-proof connections, even under high pressure or temperature fluctuations. Their reliability is critical in systems where fluid containment is a priority, such as in hydraulic systems, gas distribution, and fluid transfer. The tapered BSPT threads offer a secure seal that prevents leaks, ensuring the safety and efficiency of high-pressure systems. Similarly, the BSPP threads, with the help of sealing mechanisms like O-rings, provide a tight, reliable connection for low-pressure systems.
These adapters help maintain system integrity by preventing fluid loss and minimizing the risk of system failures caused by leaks. In high-demand applications such as hydraulic machinery, keeping the system sealed and functional is paramount.
BSP hydraulic adapters are versatile and can be used across various industries, including hydraulics, gas distribution, plumbing, and fluid transfer systems. In the hydraulic industry, these adapters help connect different components, such as hoses, valves, and pumps, creating a seamless flow of hydraulic fluid. In gas distribution systems, BSP adapters ensure a secure connection between gas pipes and equipment, helping prevent leaks and ensuring safe operations.
In plumbing, BSP adapters are commonly used to connect water supply lines and drainage systems, ensuring leak-free performance. They are also used in fluid transfer systems where liquids such as oil, chemicals, or water need to be transported safely and efficiently.
Industry | Application | Adapter Type Needed |
Hydraulics | Connecting hydraulic hoses and pumps | BSPT or BSPP adapters |
Plumbing | Connecting pipes in fluid systems | BSPP adapters for reusable connections |
Gas Distribution | Gas line connections | BSPT adapters for permanent seals |
Fluid Transfer Systems | Transferring water, oil, or chemicals | BSPP adapters for easy disassembly |
When choosing a BSP hydraulic adapter, several factors must be considered to ensure optimal performance. These include:
● Thread Type: Choosing the right thread type (BSPP or BSPT) is essential. BSPP threads are best for low-pressure systems that require frequent disassembly, while BSPT threads are suited for high-pressure systems requiring permanent connections.
● Material Compatibility: Depending on the environment and application, selecting the correct material is crucial. Stainless steel is ideal for corrosion resistance, while brass is suitable for general applications. Carbon steel is perfect for high-pressure systems due to its strength.
● Pressure Rating: The adapter must match the pressure requirements of the system. Always ensure the selected BSP hydraulic adapter is rated to handle the system's maximum operating pressure.
Consideration | Importance in Adapter Selection |
Thread Type | Ensures compatibility with components |
Pressure Rating | Prevents leaks under high pressure |
Material Compatibility | Ensures durability and performance |
Size and Fit | Prevents system failure or damage |
Some common mistakes when selecting BSP adapters include:
● Mismatching Thread Types: Using BSPP adapters with BSPT threads or vice versa can result in leaks or system failures. Always verify the thread type and size before installation.
● Incorrect Material Selection: Choosing the wrong material for the application can lead to corrosion or material failure. Ensure the material matches the demands of the environment, such as exposure to chemicals, heat, or pressure.
By avoiding these mistakes, you can ensure that the BSP hydraulic adapters perform as expected and maintain the system's integrity.
Proper installation of BSP hydraulic adapters is essential for ensuring leak-free connections. Follow these steps:
1. Verify Thread Compatibility: Ensure the BSP adapter matches the thread type and size of the components being connected.
2. Prepare the Surface: Clean the threads of both the BSP adapter and the connected components to ensure a smooth connection.
3. Apply Sealing Elements: For BSPP adapters, apply an O-ring or gasket to ensure a tight seal. For BSPT adapters, thread sealant may be necessary to enhance the seal.
4. Tighten the Adapter: Use appropriate tools to tighten the adapter, ensuring it is securely fastened without over-tightening.
Proper sealing and torque application are crucial in preventing leaks. Always use the recommended torque specifications to avoid damaging the threads or the adapter. Over-tightening can lead to thread deformation, while under-tightening can result in leaks.
BSP hydraulic adapters are vital for creating reliable connections in fluid transfer systems. Understanding BSP thread types, selecting the right materials, and following installation best practices ensure long-term performance. These adapters provide versatility and reliability in hydraulics, plumbing, and fluid transfer systems.
By choosing the right BSP adapter and using proper installation techniques, you can prevent leaks, maintain system integrity, and ensure safe system operation. Taizhou Haodema Machinery CO., LTD. offers high-quality BSP adapters to meet your needs, ensuring efficient and reliable performance in demanding environments.
A: BSP Hydraulic Adapters are essential for creating leak-proof and secure connections in fluid transfer systems. They help connect components with different thread types or sizes, ensuring compatibility in hydraulics, plumbing, and gas systems.
A: BSPP threads are parallel and require sealing mechanisms like O-rings. BSPT threads are tapered and create a seal as they tighten, ideal for high-pressure applications. Both are used in BSP Hydraulic Adapters depending on system needs.
A: When choosing a BSP Hydraulic Adapter, consider the thread type (BSPP or BSPT), pressure ratings, and material compatibility. Ensure that the adapter matches the threads of your components for a secure connection.
A: Yes, BSP Hydraulic Adapters, especially those with BSPT threads, are designed to handle high-pressure applications, ensuring secure, leak-free connections in demanding environments.
A: Selecting the correct BSP Hydraulic Adapter ensures compatibility, prevents leaks, and maintains system integrity. It is crucial for the efficient and safe operation of fluid transfer systems.
