Hose flanges are often the unsung heroes in fluid transfer systems, ensuring secure, leak-proof connections. Without them, many high-pressure systems would fail to function effectively. These components are essential in industries like oil and gas, chemical processing, and water distribution.
In this article, you will learn why hose flanges are vital for system reliability and safety. We’ll explore when and why to use them, helping you make the right choices for your fluid transfer needs.

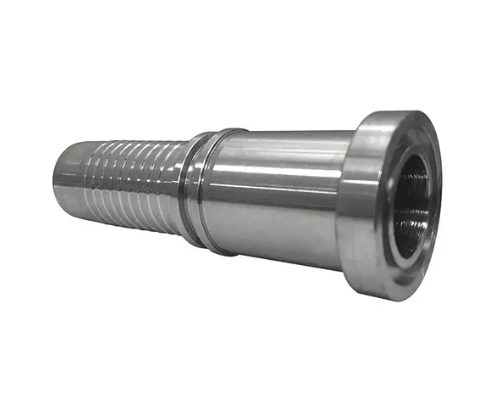

A hose flange is a mechanical connector that joins a hose to another component in a fluid system, such as a pipe, valve, or pump. It consists of a flat circular plate with bolt holes along its perimeter, allowing it to be securely fastened to another flange. The primary function of a hose flange is to create a tight, leak-proof seal between hoses and other parts of the system. Hose flanges are often used in applications where the connection needs to withstand high pressures and vibrations.
These flanges ensure that the hose stays securely attached to the component even under extreme conditions, preventing leaks that could lead to failures, environmental hazards, or safety risks. They are designed to be durable, capable of maintaining a secure connection for long periods without degradation or loss of integrity.
In fluid transfer systems, the integrity of connections is vital to maintaining performance. Hose flanges are essential for creating leak-proof connections that can handle high pressures, preventing unwanted spills or ruptures in the system. Flanges act as a reliable and strong joint that holds the hose in place, even under fluctuating temperatures and vibrations.
These flanges are particularly crucial in industries where maintaining pressure and preventing leaks are critical. For example, in the oil and gas sector, hose flanges ensure the safe transport of crude oil and natural gas, where even a minor leak can have disastrous consequences. Similarly, in chemical processing, hose flanges help maintain safety by ensuring that corrosive or hazardous materials remain securely contained.
Hose flanges come in various types, each suited to different applications and environments. Understanding the types of hose flanges is crucial for selecting the right one for your specific needs.
Fixed flanges are permanently welded to the hose and provide a robust, secure connection that cannot be easily removed. These flanges are ideal for permanent installations where the hose does not need to be disconnected frequently. Fixed flanges are often used in industrial applications where constant pressure and vibrations are common, ensuring that the hose remains firmly in place.
Slip-on flanges, as the name suggests, are designed to slide over the hose and are then bolted in place. They are widely used in systems where hoses need to be replaced or removed frequently. The slip-on design makes it easier to install and remove hoses, reducing downtime in industrial settings. These flanges are popular in systems where flexibility is required, such as in manufacturing or chemical processing, where hose replacement or maintenance happens regularly.
Blind flanges are solid flanges with no center hole. They are used to close off the end of a piping system or to isolate a section of the system for maintenance or testing. Blind flanges are especially useful in systems that require periodic inspection or when a section of the pipeline needs to be temporarily sealed off. These flanges are easy to install and remove, making them a convenient option for ensuring system integrity during repairs or upgrades.
Threaded flanges feature internal threads that allow them to be screwed onto a hose or pipe without the need for welding. These flanges are often used in applications where welding is impractical or undesirable, such as in tight spaces or where the hose needs to be frequently disconnected and reconnected. Threaded flanges offer the advantage of easy installation and removal, although they are typically not recommended for high-pressure applications.

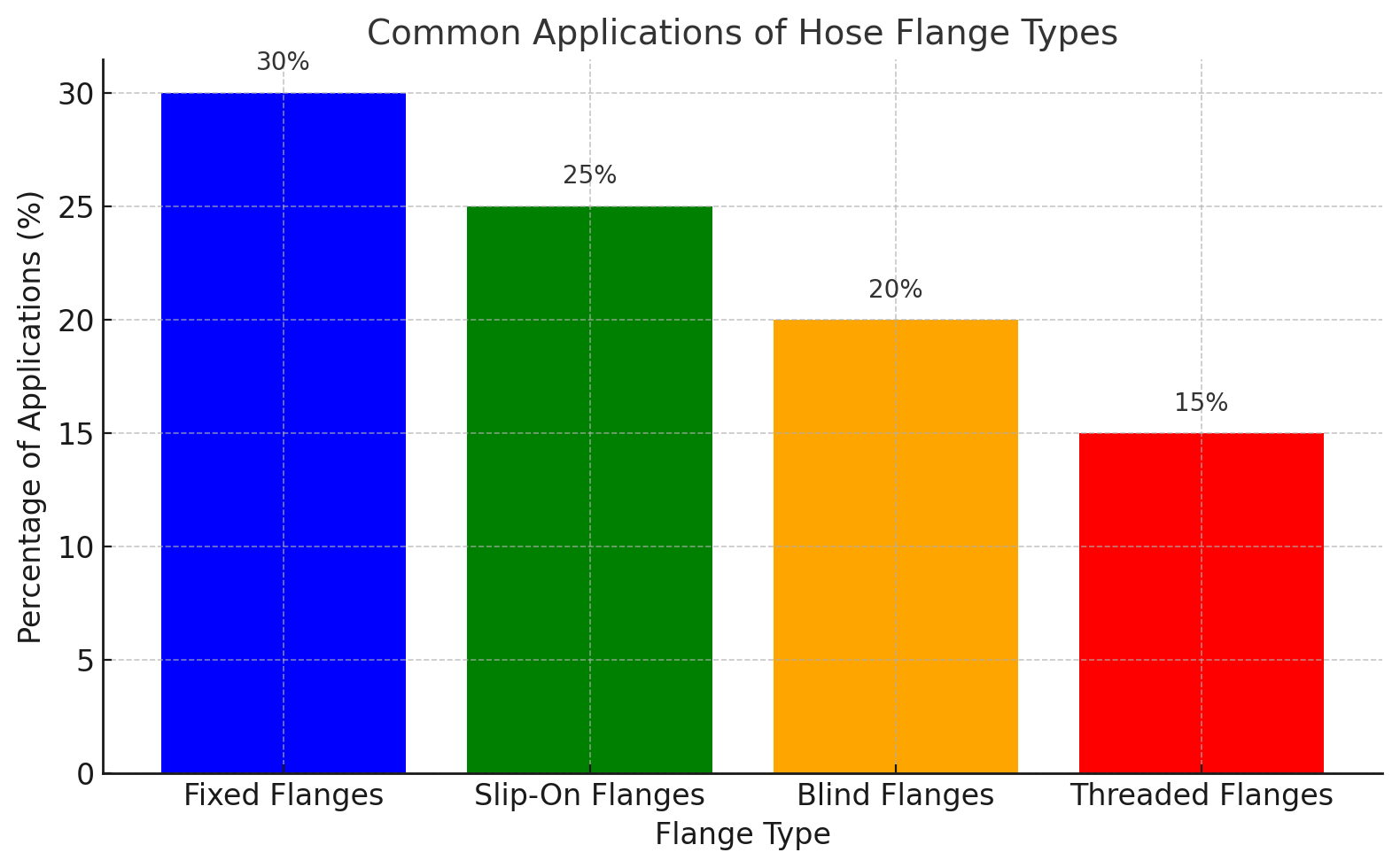

Type of Hose Flange | Description | Common Applications |
Fixed Flanges | Permanently welded to the hose for secure connection | Permanent hose connections in systems requiring low maintenance |
Slip-On Flanges | Slips over the hose end and is bolted into place | Systems with hoses that need frequent replacement |
Blind Flanges | Used to close off the end of a piping system | Temporary sealing in maintenance or testing |
Threaded Flanges | Connects by threading, eliminating the need for welding | Applications where welding isn't feasible or desired |
Hose flanges offer several advantages that make them an essential component in fluid transfer systems. First and foremost, they provide secure, leak-proof connections, ensuring the safety and reliability of the system. They can withstand high pressures and are durable enough to handle fluctuations in pressure and temperature. This makes them ideal for use in demanding environments like oil and gas pipelines, chemical processing plants, and water distribution systems.
Additionally, hose flanges are versatile, coming in different designs and materials to accommodate various system requirements. Slip-on and lap-joint flanges, for example, offer ease of disassembly, which is particularly useful for systems that require frequent maintenance or hose replacement.
Hose flanges are widely used across different industries, particularly in high-pressure and high-temperature systems. These flanges are often found in:
● Oil and Gas: Used in drilling and transportation systems to ensure secure connections under extreme pressure.
● Chemical Processing: Required for safely transferring hazardous materials where leaks can cause serious safety risks.
● Water Distribution: Essential in municipal water systems for ensuring reliable and leak-free water transport.
● Manufacturing and Food Processing: Used where cleanliness and durability are key, especially in systems transporting food-grade liquids.
Hose flanges are also necessary in applications where regular maintenance or modifications to the system are needed. Their ability to be easily disconnected and reassembled makes them perfect for environments that require frequent access or inspection.
When selecting a hose flange, several factors must be taken into account:
● Working Pressure and Temperature: Ensure that the flange can handle the pressure and temperature requirements of the system. For high-pressure systems, flanges designed to withstand higher pressures should be chosen.
● Type of Media: Different hose flanges are made from various materials to suit different fluids. For example, stainless steel is often used in chemical processing due to its resistance to corrosion.
● Flexibility or Rigidity: Depending on the system’s design, you may need a flange that offers flexibility (such as slip-on flanges) or a more rigid solution (such as fixed flanges).
Choosing the wrong hose flange can lead to system failures, costly repairs, and safety risks. Some common mistakes to avoid include:
● Mismatching Flange Types: Ensure that the flange type matches the requirements of the system, such as pressure levels, temperature, and material compatibility.
● Incorrect Material Selection: Choosing a flange made from the wrong material can result in premature wear and failure, especially in systems handling corrosive or high-temperature fluids.
● Improper Sizing: Ensure that the flange matches the hose size and the pressure rating of the system. An incorrectly sized flange can lead to leaks or inadequate sealing.
Factor | Consideration |
Working Pressure | Choose flanges that can withstand the pressure in your system. |
Temperature | Ensure the flange can handle the operational temperatures of the system. |
Type of Media | Select flanges that are compatible with the type of fluid being transferred. |
Flexibility/Rigidity | Determine whether your system requires flexibility or a rigid connection. |
Proper installation of hose flanges is crucial for ensuring a leak-proof connection. Follow these steps for secure installation:
1. Prepare the Components: Ensure that the hose and flange are clean and free from debris. This helps to avoid contamination or damage to the sealing surface.
2. Align the Flange: Carefully align the flange with the hose and the connecting component to ensure a secure fit.
3. Insert the Bolts: Use bolts of the correct size and material to secure the flange. Tighten them in a criss-cross pattern to ensure even pressure distribution.
4. Check for Leaks: After installation, inspect the flange for any signs of leakage. If necessary, re-tighten the bolts or adjust the alignment.
● Use Proper Gaskets: Always use the appropriate gasket material for the media being transferred to prevent leaks.
● Torque Specifications: Follow the manufacturer’s torque specifications when tightening the bolts to avoid damaging the flange or creating an insecure connection.
● Regular Maintenance: Periodically check the hose flange for wear and tear, particularly in systems with high pressure or frequent temperature fluctuations.
Hose flanges are vital for ensuring secure, leak-proof connections in fluid transfer systems. Understanding the types, applications, and selection criteria for hose flanges helps maintain system efficiency and reliability. Proper installation and ongoing maintenance are crucial to prevent system failures.
For high-quality hose flange solutions, Taizhou Haodema Machinery CO., LTD. offers products designed to deliver reliable performance and long-lasting durability in demanding environments.
A: A hose flange is a mechanical component used to connect hoses to pumps, valves, and other equipment. It ensures secure, leak-proof connections, which is crucial for preventing system failures.
A: Use a hose flange when you need a secure, high-pressure connection, particularly in systems that require regular maintenance, easy disassembly, or where vibrations and pressure surges are common.
A: Consider the working pressure, temperature, media type, and whether flexibility or rigidity is needed in your system to select the most suitable hose flange.
A: Hose flanges provide leak-proof connections, durability under high pressure, and ease of maintenance, making them ideal for demanding environments such as oil and gas or chemical processing.
A: Hose flanges are versatile and used in various industries, including oil and gas, chemical processing, water distribution, and food manufacturing, wherever secure, leak-free connections are necessary.
