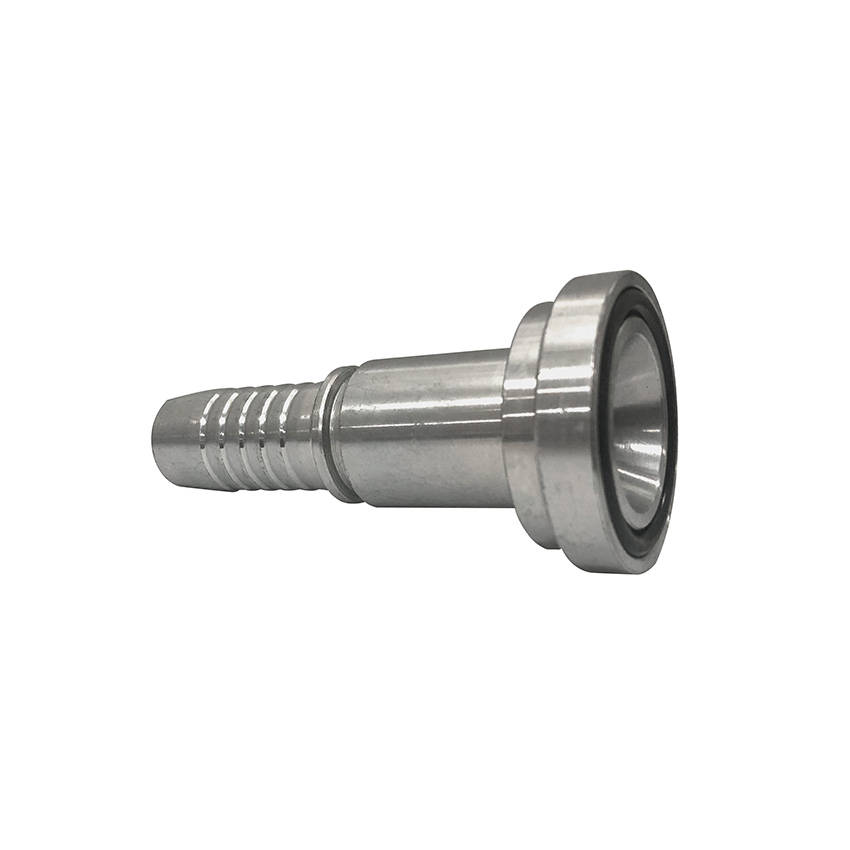

87311 Hose Flange

87311 Hose Flange is a straight flange fitting can be used under very high pressure or temperature with a strong, watertight connection.
The 87311 Hose Flange are widely used in gas and oil transportation, hose replacement, and pipeline systems.
Ask for a free sample if you are interested and feel free to contact us for any concerns or questions.
Availability:
Quantity:
Inquire Add to Basket

Features and Benefits:

High-quality

Easy to install

Customizable


PART NO.

FLANGR SIZE

HOSE BORE

DIMNSIONS

DN

DASH

L

D

L1

H87311-08-08RW

1/2"

13

08

46

30.2

6.73

H87311-12-08RW

3/4"

13

08

47

38.1

6.73

H87311-12-10RW

3/4"

16

10

48

38.1

6.73

H87311-12-12RW

3/4"

19

12

48

38.1

6.73

H87311-12-16RW

3/4"

25

16

49

38.1

6.73

H87311-16-12RW

1"

19

12

51

44.4

8

H87311-16-16RW

1"

25

16

52

44.4

8

H87311-16-20RW

1"

32

20

53

44.4

8

H87311-20-16RW

1.1/4"

25

16

57

50.8

8

H87311-20-20RW

1.1/4"

32

20

58

50.8

8

H87311-24-20RW

1.1/2"

32

20

68

60.3

8

H87311-24-24RW

1.1/2"

38

24

68

60.3

8

H87311-32-24RW

2"

38

24

66

71.4

9.53

H87311-32-32RW

2"

51

32

66

71.4

9.53

NOTE: 1、For use with braided hoses.2、If use with spiral hoses, hose fitting series number isnumber is H87312-XX-XXRW.
