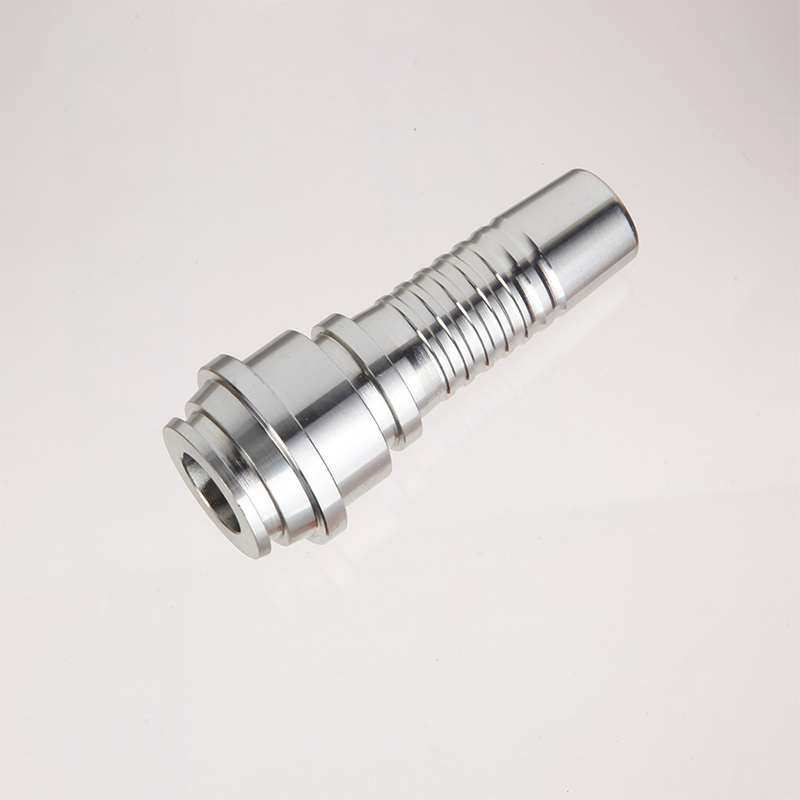

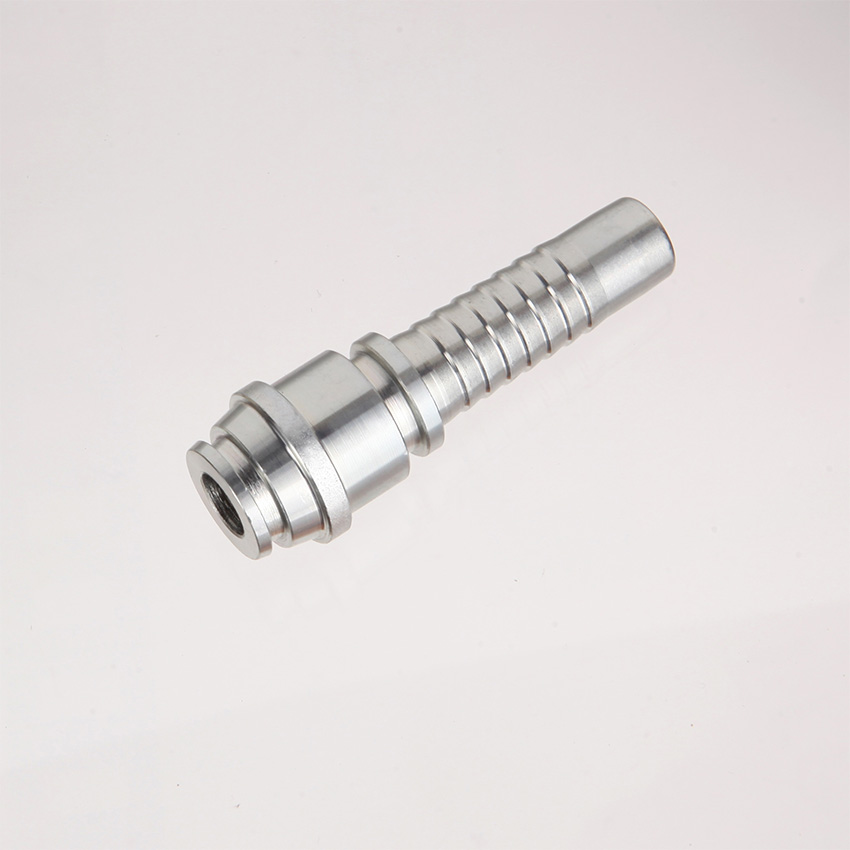

20512TX Metric Hose Fitting

Key Features

Metric Thread Design

The 20512TX fitting is designed with precise metric threading, ensuring compatibility with a wide range of hydraulic systems that conform to international standards. When operators thread this component into a manifold or valve block, the engagement is exceptionally smooth, minimizing the risk of galling or cross-threading during installation. This exact dimensional accuracy ensures an airtight, metal-to-metal seal that prevents costly fluid weeping. By maintaining consistent torque values across various industrial and mechanical systems, this design significantly reduces assembly time and eliminates the need for excessive thread sealants, making it an ideal choice for applications that require consistent, high-performance connections across critical infrastructure.

Durable Construction

Made from high-strength materials such as carbon steel and stainless steel, the 20512TX fitting is engineered to withstand the demanding conditions of high-pressure environments. Beyond the raw material strength, these components undergo an advanced zinc-nickel alloy plating process. This specialized surface treatment provides excellent corrosion resistance, delivering up to 720 hours of protection against red rust during intensive salt spray testing. The dense, metallic finish feels substantial in hand and ensures the fitting’s longevity and reliable performance in even the harshest conditions, whether it's exposed to chemicals, persistent moisture, or extreme temperatures. This metallurgical durability translates to fewer replacement cycles and enhanced safety for operators working near pressurized lines.

Variety of Configurations

The 20512TX fitting is available in a range of sizes and configurations, including straight, 45-degree, and 90-degree angles. Recognizing the spatial constraints of modern machinery, this variety allows for greater flexibility and adaptability in design, making it suitable for a wide array of hydraulic, fluid transfer, and industrial applications. Mechanical engineers can route hoses efficiently through tight compartments without inducing unnatural bends or stress points in the hose assembly. The different configurations enable it to meet specific system needs, helping engineers create the most efficient and reliable fluid transfer systems while reducing pressure drops and minimizing the physical footprint of the hydraulic circuit.

Precision Quality Control

Every fitting is subjected to a rigorous, multi-stage testing protocol before reaching the assembly line. The manufacturing process utilizes advanced CNC machining centers to maintain an ultra-tight tolerance of ±0.1mm, ensuring absolute dimensional consistency across large production runs. The finished components undergo comprehensive hardness evaluations, dynamic pressure impulse testing, and strict zero-leakage verifications. This uncompromising approach to quality assurance guarantees that each unit will perform predictably under cyclical loading, safeguarding fluid systems against sudden pressure spikes and mechanical fatigue.

Applications

Hydraulic Systems

The 20512TX fitting is perfect for use in hydraulic systems that require dependable, leak-proof connections. Its precision threading ensures a secure fit with hoses, valves, and other hydraulic components, making it a key element in machinery, automotive systems, and industrial equipment where hydraulic pressure is essential for operation. In the field, this means construction excavators, automotive presses, and manufacturing assembly lines can maintain peak operating pressures without the risk of fluid bypass. The heavy-duty steel construction and leak-resistant features make it ideal for applications in construction, manufacturing, and automotive industries, preventing fluid loss and maintaining a clean, hazard-free working environment.

Fluid Transfer

This fitting is also widely used in applications that involve the transfer of various fluids under pressure. It ensures optimal flow rates with minimal leakage, making it suitable for a variety of industries such as agriculture, mining, and chemical processing. Meticulously designed to facilitate high volumetric flow while virtually eliminating turbulence at the connection points, it excels in demanding environments. Whether handling water, oils, or other industrial fluids, the 20512TX fitting ensures a safe and efficient flow, maintaining system integrity and minimizing downtime. By securing the conduit against abrasive slurries or specialized lubricating oils, it preserves the overall health of the processing network.
