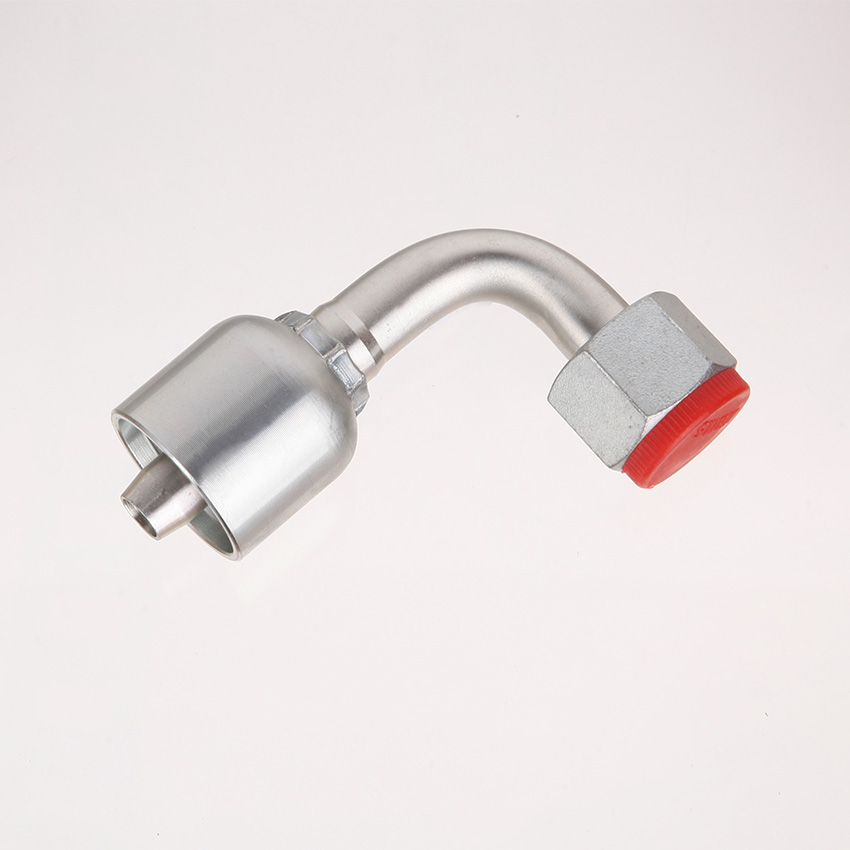

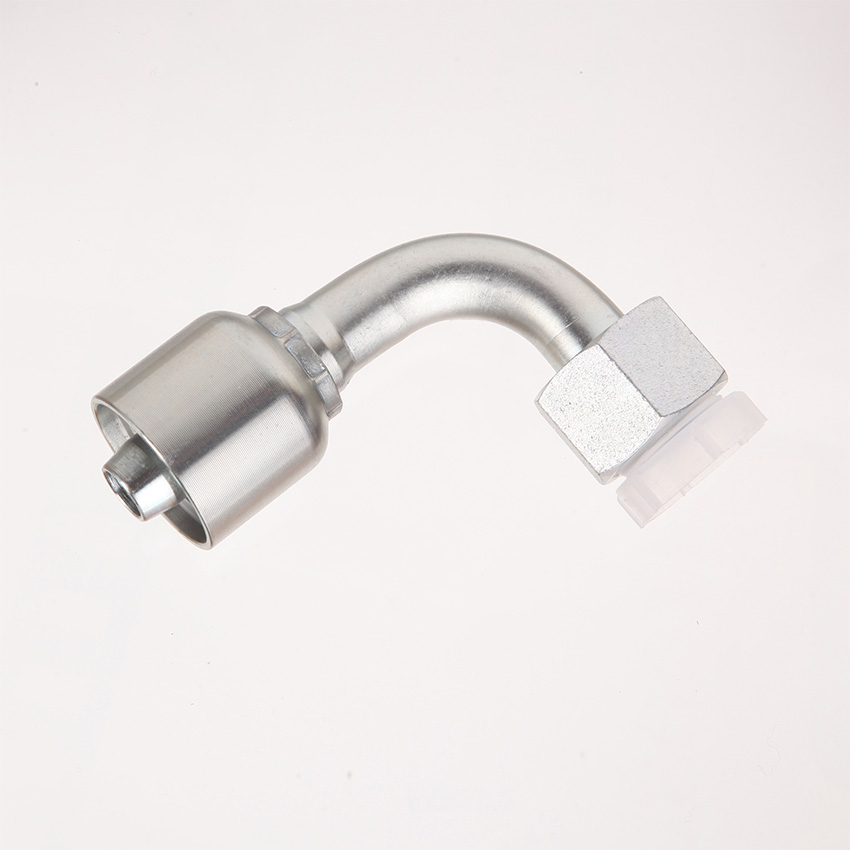

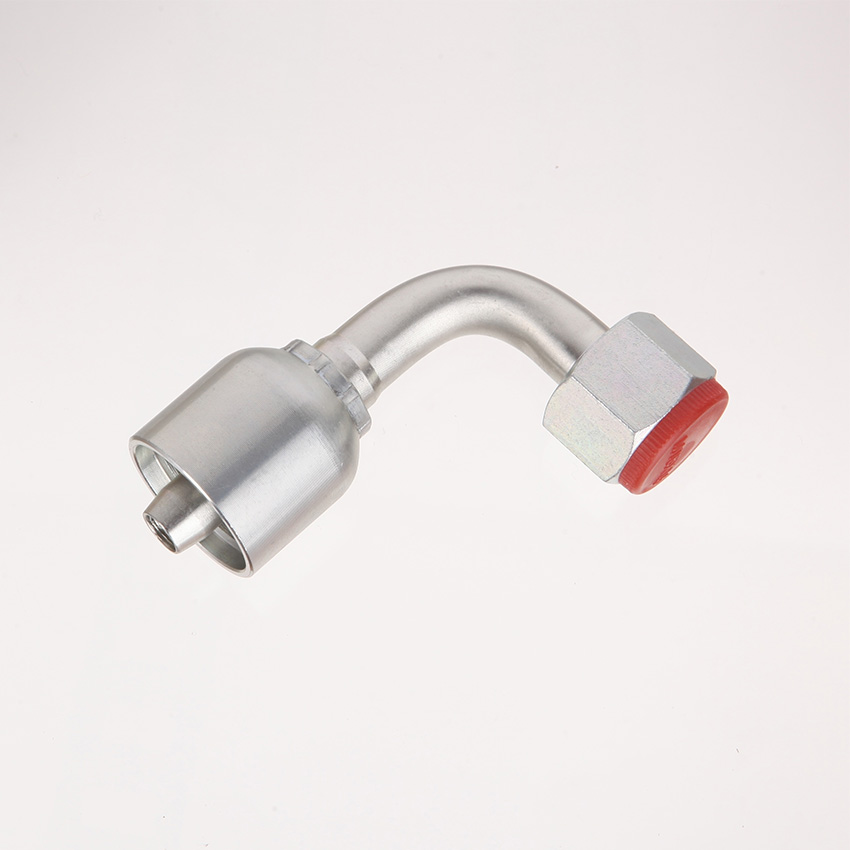

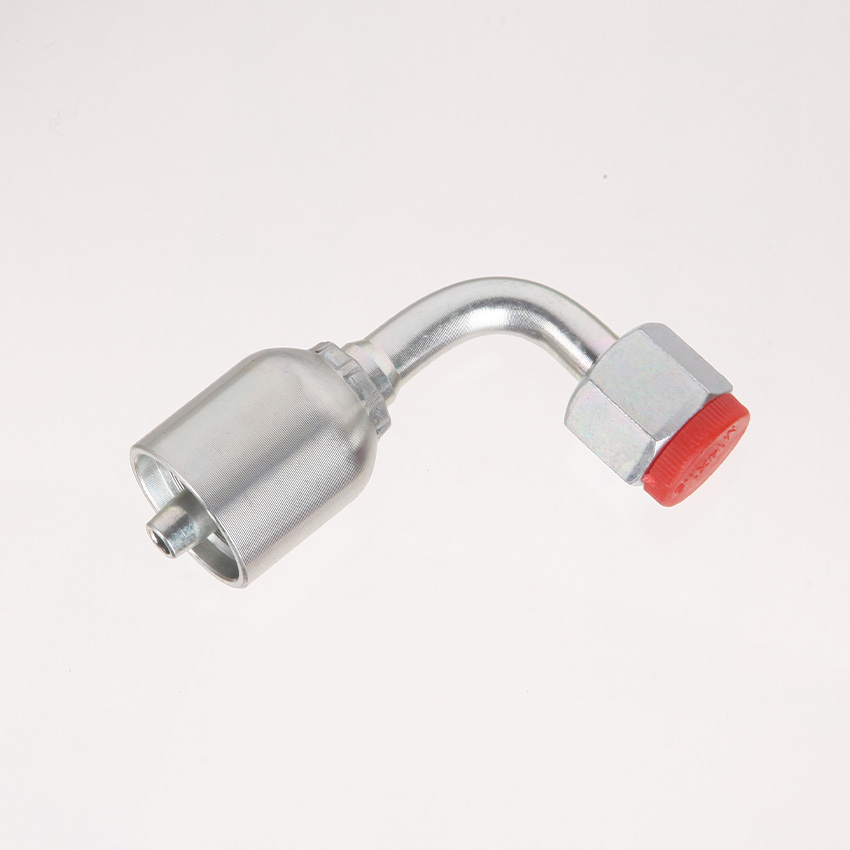

20491TRW Metric Hose Fitting

20491TRW Metric Hose Fitting has a female metric thread and O-ring which allows you connect hose and tubes easily and tightly.
The 20491TRW Metric Hose Fitting are widely used in gas and oil transportation, hose replacement, and pipeline systems.
Ask for a free sample if you are interested and feel free to contact us for any concerns or questions.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features and Benefits:

High-quality

Easy to install

Customizable

PART NO.	T	HOSE BORE		Outer diameter of pipe	DIMNSIONS
	THREAD T	DN	DASH	TUBE O.E.	L	H	S1
H20491-14-04TRW	M14X1.5	6	04	8	32	30.5	17
H20491-16-04TRW	M16X1.5	6	04	10	32	33	19
H20491-16-05TRW	M16X1.5	8	05	10	32.5	33	19
H20491-18-05TRW	M18X1.5	8	05	12	32.5	36	22
H20491-18-06TRW	M18X1.5	10	06	12	36.5	36	22
H20491-22-08TRW	M22X1.5	13	08	15	44.5	40.5	27
H20491-26-08TRW	M26X1.5	13	08	18	44.5	51.5	32
H20491-26-10TRW	M26X1.5	16	10	18	55	51.5	32
H20491-30-10TRW	M30X2	16	10	22	55	56	36
H20491-30-12TRW	M30X2	19	12	22	62	56	36
H20491-36-12TRW	M36X2	19	12	28	62	68.5	41
H20491-36-16TRW	M36X2	25	16	28	74	68.5	41
H20491-45-16TRW	M45X2	25	16	35	74	78.5	50
H20491-45-20TRW	M45X2	32	20	35	91.5	78.5	50
H20491-52-20TRW	M52X2	32	20	42	91.5	95	60
H20491-52-24TRW	M52X2	38	24	42	108	95	60
Note:1.For use with braided hoses.2.If use spiral hoses,hose fiting series number is H20492-xX-XXTRW.
