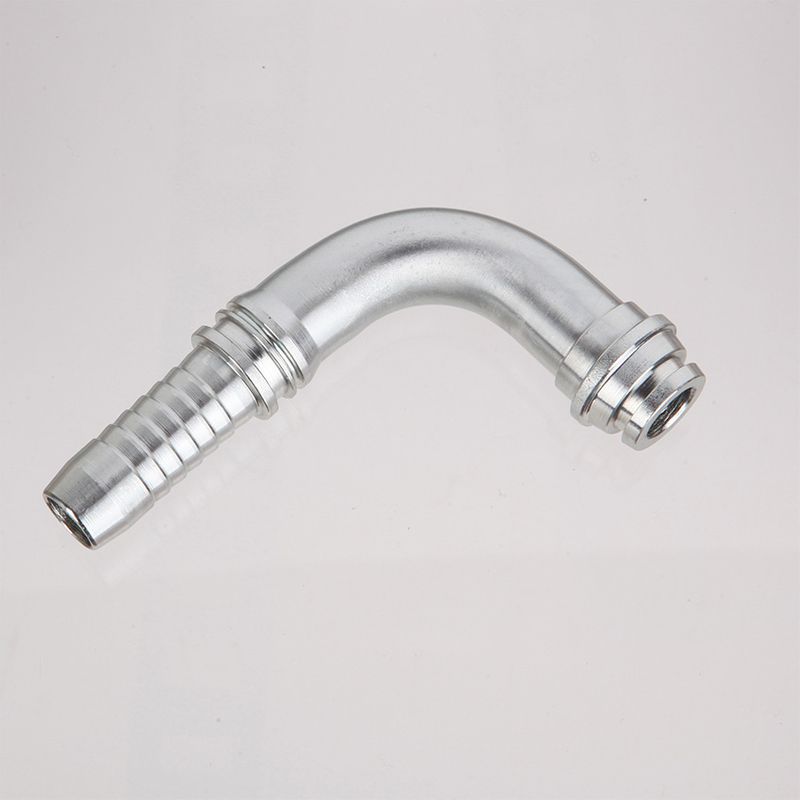

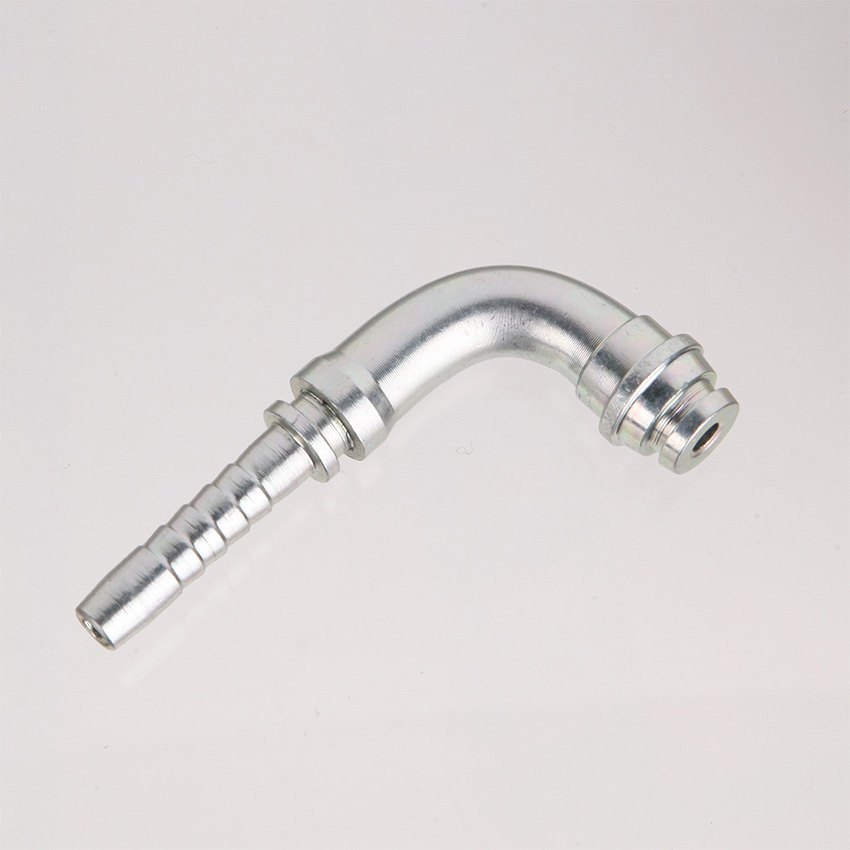

Product Description:
Material Options: Available in Carbon Steel & Stainless Steel.
Standard Plating: Trivalent Zinc Plating (Cr3/Chrome-Free), available in Silver & Yellow finishes.
Salt Spray Test: 72 Hours standard (can be extended to 200 hours per customer request).
Packaging: Each product is protected with plastic caps and packed in carbon boxes.
OEM Service: Available. Simply provide product drawings or samples.
Samples: Contact our sales team to request a free sample.
We specializes in the development, manufacturing, and sale of fluid flow systems. Our product range includes various hydraulic hose fittings, adapters, hydraulic hoses, high-pressure hose assemblies, and other metal parts, in addition to being an agent for related fluid joint products. We also offer OEM services. Our products are widely used in aerospace, automotive, shipbuilding, medical, chemical, petroleum, and other industries.
PART NO. | T | HOSE BORE | Outer diameter of pipe | DIMNSIONS | ||
THREADT | DN | DASH | TUBE O.E. | L | S1 | |
H20411-12-04TRW | M12X1.5 | 6 | 04 | 6 | 26 | 17 |
H20411-14-04TRW | M14X1.5 | 6 | 04 | 8 | 23.5 | 17 |
H20411-16-04TRW | M16X1.5 | 6 | 04 | 10 | 20.5 | 19 |
H20411-16-05TRW | M16X1.5 | 8 | 05 | 10 | 25.5 | 19 |
H20411-18-05TRW | M18X1.5 | 8 | 05 | 12 | 23.5 | 22 |
H20411-18-06TRW | M18X1.5 | 10 | 06 | 12 | 26.5 | 22 |
H20411-22-08TRW | M22X1.5 | 13 | 08 | 15 | 28.5 | 27 |
H20411-26-08TRW | M26X1.5 | 13 | 08 | 18 | 30 | 32 |
H20411-26-10TRW | M26X1.5 | 16 | 10 | 18 | 32 | 32 |
H20411-30-10TRW | M30X2 | 16 | 10 | 22 | 32.5 | 36 |
H20411-30-12TRW | M30X2 | 19 | 12 | 22 | 33.5 | 36 |
H20411-36-12TRW | M36X2 | 19 | 12 | 28 | 35 | 41 |
H20411-36-16TRW | M36X2 | 25 | 16 | 28 | 36 | 41 |
H20411-45-16TRW | M45X2 | 25 | 16 | 35 | 34 | 50 |
H20411-45-20TRW | M45X2 | 32 | 20 | 35 | 35 | 50 |
H20411-52-20TRW | M52X2 | 32 | 20 | 42 | 38 | 60 |
H20411-52-24TRW | M52X2 | 38 | 20 | 42 | 38 | 60 |
Note:1.For use with braided hoses.2.If use spiral hoses,hose fitting series number is H20412-xX-XXTRW | ||||||
