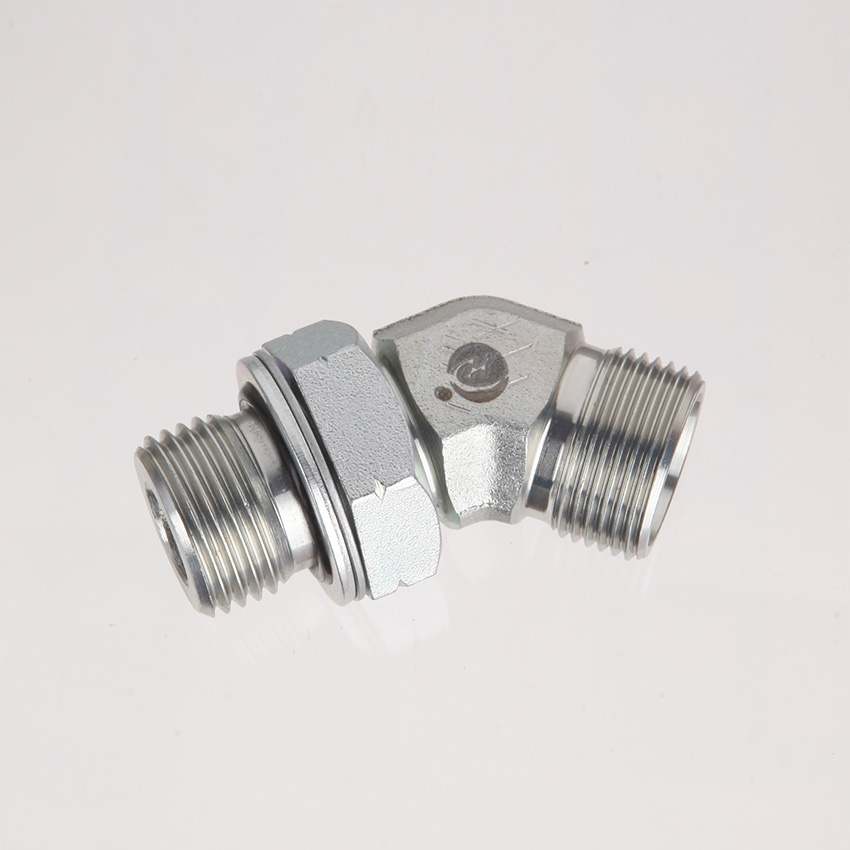

1CG4 DIN Hydraulic Adapters

The 1CG4 DIN Hydraulic Adapter is a high-performance, durable fitting used to link components in hydraulic systems, adhering to the DIN standards for reliable and efficient operation in demanding applications.

Availability:

Quantity:



Inquire Add to Basket

Product Description

DIN Standard:

The DIN standard refers to the system of measurements and specifications that ensures hydraulic fittings are compatible with various hydraulic systems worldwide. This standard is especially important for industries that require precise and reliable hydraulic connections, such as construction, automotive, and manufacturing.

Functionality

These hydraulic adapters are designed to create secure, leak-proof connections between hydraulic hoses and pipes. They can be used to connect components within a hydraulic circuit, allowing fluid to flow efficiently and safely between them.

Material:

Typically, these adapters are made from high-quality, corrosion-resistant materials such as stainless steel, carbon steel, or brass to ensure durability and long-term performance in demanding environments.

Applications:

1CG4 DIN Hydraulic Adapters are used in a wide range of applications, such as:

Construction Machinery: Ensuring hydraulic systems in machines like excavators, cranes, and bulldozers are connected securely.

Agricultural Equipment: For use in farming machinery that requires reliable hydraulic fluid transfer.

Industrial Systems: In factories or manufacturing plants that rely on hydraulic power for various operations.

Types of Connections:

These adapters typically feature specific thread types, sizes, and connection methods to ensure a proper fit for each system. Common connection styles include male-to-female, threaded, or flanged connections.

PART NO	T H R E A D		Outer diameter of pipe		D I M E N S I O N S						weight G/piece	working pressure (bar)	series
PART NO	T1	T2	D1	D2	L1	L2	L3	L4	S1	S2	weight G/piece	working pressure (bar)	series
H1CG-12-02	M12X1.5	G1/8"×28	06	14	23.5	8.5	8	23	14	14	14	315	L
H1CG-12-04	M12X1.5	G1/4"X19	06	18	29	10	12	25	19	14	60	315
H1CG-12-06	M12X1.5	G3/8"×19	06	22	30.5	11.5	12	26	22	14	45	315
H1CG-12-08	M12X1.5	G1/2"X14	06	26	33	12	14	27	27	14	60	315
H1CG-14-02	M14X1.5	G1/8"X28	08	14	23.5	8.5	8	23	14	17	16	315
H1CG-14-04	M14X1.5	G1/4"X19	08	18	29	10	12	25	19	17	26	315
H1CG-14-06	M14X1.5	G3/8"X19	08	22	30.5	11.5	12	26	22	17	44	315
H1CG-14-08	M14X1.5	G1/2"X14	08	26	33	12	14	27	27	17	74	315
H1CG-16-02	M16X1.5	G1/8"X28	10	14	25.5	10.5	8	25	17	19	21	315
H1CG-16-04	M16X1.5	G1/4"×19	10	18	30	11	12	26	19	19	31	315
H1CG-16-06	M16X1.5	G3/8"×19	10	22	31.5	12.5	12	27	22	19	44	315
H1CG-16-08	M16X1.5	G1/2"X14	10	26	34	13	14	28	27	19	72	315
H1CG-18-02	M18X1.5	G1/8"×28	12	14	26.5	11.5	8	26	19	22	27	315
H1CG-18-04	M18X1.5	G1/4"×19	12	18	31	12	12	27	19	22	32	315
H1CG-18-06	M18X1.5	G3/8"X19	12	22	31.5	12.5	12	27	22	22	43	315
H1CG-18-08	M18X1.5	G1/2"×14	12	26	34	13	14	28	27	22	67	315
H1CG-18-12	M18X1.5	G3/4"X14	12	32	37	14	16	29	32	22	120	315
H1CG-22-06	M22X1.5	G3/8"×19	15	22	32.5	13.5	12	29	24	27	56	250
H1CG-22-08	M22X1.5	G1/2"X14	15	26	35	14	14	29	27	27	72	250
H1CG-22-12	M22X1.5	G3/4"X14	15	32	38	15	16	30	32	27	118	250
H1CG-26-06	M26X1.5	G3/8"X19	18	22	33.5	14	12	29.5	27	32	69	250
H1CG-26-08	M26X1.5	G1/2"X14	18	26	36	14.5	14	31	27	32	72	250
H1CG-26-12	M26X1.5	G3/4"X14	18	32	38	14.5	16	30	32	32	112	250
H1CG-30-08	M30X2	G1/2"X14	22	26	38	16.5	14	33	32	36	91	160
H1CG-30-12	M30X2	G3/4"X14	22	32	40	16.5	16	33	32	36	103	160
H1CG-30-16	M30X2	G1"X11	22	39	43	17.5	18	33.5	41	36	184	160
H1CG-36-08	M36X2	G1/2"X14	28	26	39	17.5	14	34	41	41	141	160
H1CG-36-12	M36X2	G3/4"×14	28	32	41	17.5	16	34	41	41	156	160
H1CG-36-16	M36X2	G1"×11	28	39	43	17.5	18	34	41	41	168	160
H1CG-36-20	M36X2	G1.1/4"X11	28	50	46	18.3	20	35	50	41	314	160
H1CG-45-12	M45X2	G3/4"X14	35	32	44	17.5	16	39	46	50	202	160
H1CG-45-16	M45X2	G1"X11	35	39	46	17.5	18	39	46	50	234	160
H1CG-45-20	M45X2	G1.1/4"X11	35	50	48	17.5	20	39	50	50	276	160
H1CG-45-24	M45X2	G1.1/2"X1	35	55	52	19.5	22	41	55	50	355	160
H1CG-52-16	M52X2	G1"X11	42	39	48	19	18	42	55	60\|	327	160
H1CG-52-20	M52X2	G1.1/4"X1	42	49	50	19	20	42	55	60	336	160
H1CG-52-24	M52X2	G1.1/2"×11	42	55	52	19	22	42	55	60	349	160
H1DG-14-02	M14X1.5	G1/8"X28	06	14	27.5	12.5	8	27	14	17	22	400	s
H1DG-14-04	M14X1.5	G1/4"X19	06	18	32	13	12	28	19	17	35	400
H1DG-14-06	M14X1.5	G3/8"X19	06	22	34.5	15.5	12	30	22	17	57	400
H1DG-14-08	M14X1.5	G1/2"X14	06	26	39	18	14	33	27	17	83	400
H1DG-16-04	M16X1.5	G1/4"X19	08	18	34	15	12	30	19	19	41	400
H1DG-16-06	M16X1.5	G3/8"X19	08	22	34.5	15.5	12	30	22	19	59	400
H1DG-16-08	M16X1.5	G1/2"×14	08	26	39	18	14	33	27	19	100	400
H1DG-18-04	M18X1.5	G1/4"×19	10	18	34	14.5	12	31	19	22	43	400
H1DG-18-06	M18X1.5	G3/8"×19	10	22	34.5	15	12	31	22	22	56	400
H1DG-18-08	M18X1.5	G1/2"X14	10	26	39	17.5	14	34	27	22	97	400
H1DG-20-04	M20X1.5	G1/4"×19	12	18	36	16.5	12	33	22	24	57	400
H1DG-20-06	M20X1.5	G3/8"X19	12	22	36.5	17	12	33	22	24	62	400
H1DG-20-08	M20X1.5	G1/2"X14	12	26	39	17.5	14	34	27	24	57	400
