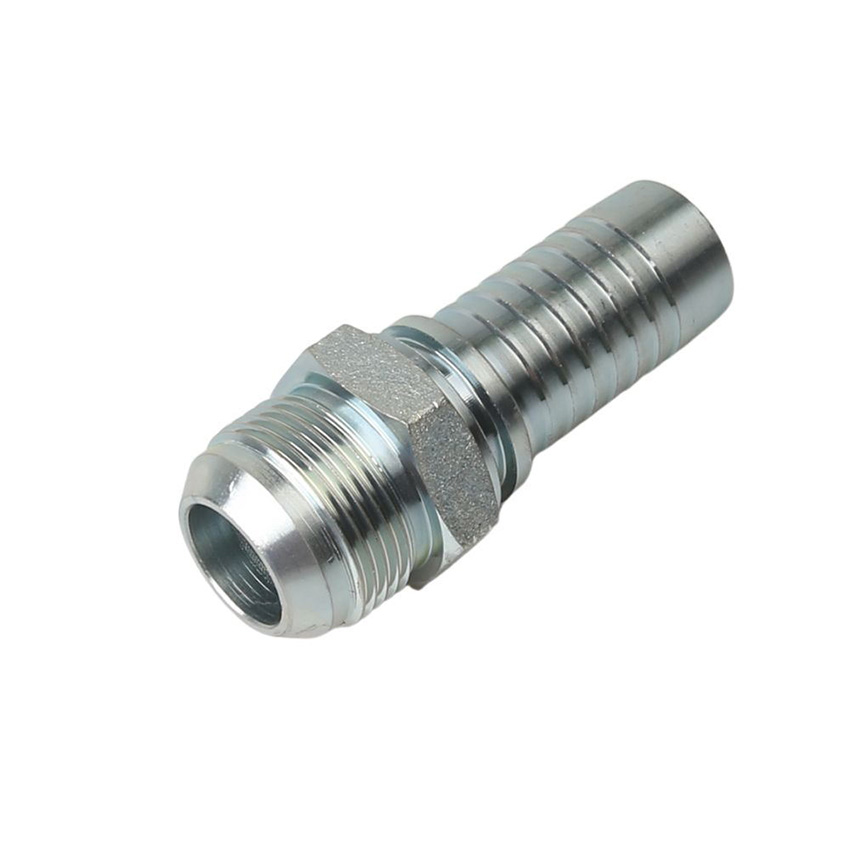

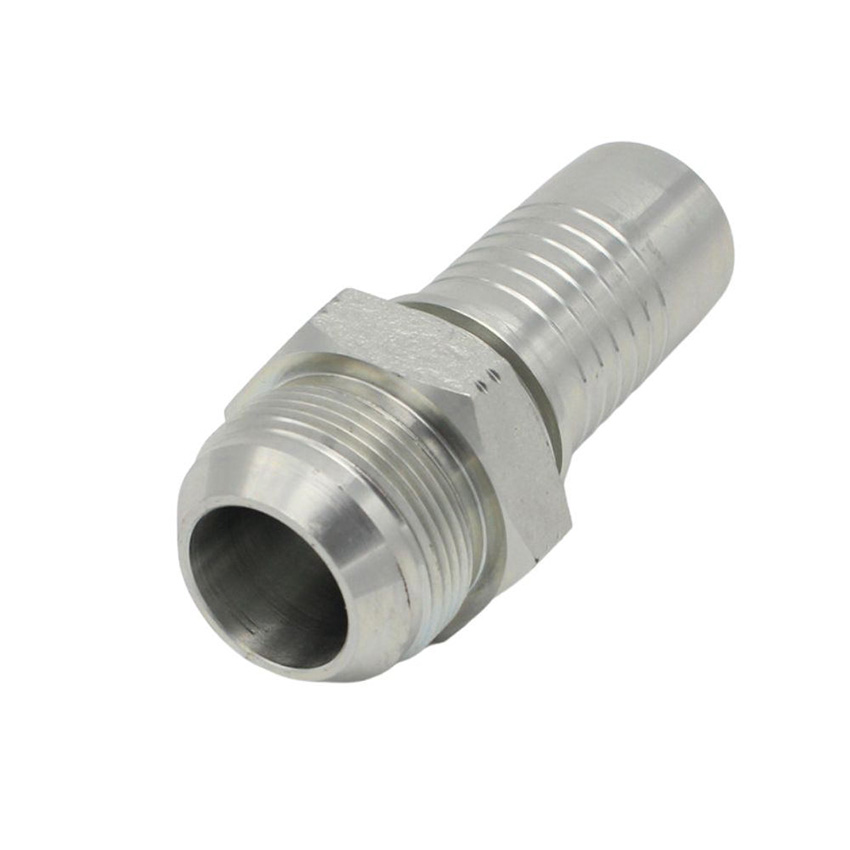

JIC (Joint Industry Council) Thread Design: The 16711 JIC fitting is equipped with a 37-degree flare connection, which ensures a leak-free seal when coupled with compatible JIC hose fittings or hydraulic components. This thread design is widely recognized for its ability to withstand high pressure and provide a secure, tight connection.
Material Variety: Typically made from high-grade steel, stainless steel, or brass, these fittings are designed to resist corrosion and wear, ensuring a long service life even in harsh environments.
Versatility: The 16711 JIC Hose Fitting is used in a variety of applications, including fluid power systems, fuel systems, lubrication systems, and pneumatic systems. It is compatible with a wide range of hoses and provides easy installation in any system that requires secure and high-pressure fluid connections.
Performance: These hose fittings provide optimal performance in environments where safety and reliability are critical. Their design ensures minimal leak potential and maximum flow efficiency.
Hydraulic systems in manufacturing and construction equipment
Fuel and lubrication systems in automotive and aerospace industries
Fluid transfer in industrial machinery and equipment
Heavy-duty machines that operate under high pressure
PART NO. | T H R E A D | D I M N S I O N S | WEIGHT | ||||||
T1 | T2 | L1 | L2 | L3 | S1 | ||||
H1J-04 | 7/16"X20 | 7/16"×20 | 14 | 14 | 34 | 12 | 23 | 34.5 | |
H1J-04-05 | 7/16"×20 | 1/2"X20 | 14 | 14 | 34 | 14 | 26 | ||
H1J-04-06 | 7/16"X20 | 9/16"X18 | 14 | 14.1 | 36 | 17 | 35 | ||
H1J-04-08 | 7/16"×20 | 3/4"X16 | 14 | 16.7 | 38.5 | 22 | 60 | 31 | |
H1J-05 | 1/2"X20 | 1/2"X20 | 14 | 14 | 34.8 | 14 | 29 | 34.5 | |
H1J-05-06 | 1/2"X20 | 9/16"×18 | 14 | 14.1 | 34 | 17 | 35 | ||
H1J-05-08 | 1/2"X20 | 3/4"X16 | 14 | 16.7 | 38.5 | 22 | 63 | 31 | |
H1J-06 | 9/16"×18 | 9/16"×18 | 14.1 | 14.1 | 34.2 | 17 | 35 | 34.5 | |
H1J-06-08 | 9/16"X18 | 3/4"X16 | 14.1 | 16.7 | 38.5 | 22 | 62 | 31 | |
H1J-06-10 | 9/16"X18 | 7/8"X14 | 14.1 | 19.3 | 41.5 | 24 | 81 | 24 | |
H1J-08 | 3/4"×16 | 3/4"X16 | 16.7 | 16.7 | 42 | 22 | 78 | 31 | |
H1J-08-10 | 3/4"×16 | 7/8"X14 | 16.7 | 19.3 | 44 | 24 | 92 | 24 | |
H1J-08-12 | 3/4"X16 | 1.1/16"×12 | 16.7 | 21.9 | 49 | 30 | 148 | ||
H1J-10 | 7/8"×14 | 7/8"X14 | 19.3 | 19.3 | 46.5 | 24 | 102 | ||
H1I-10-12 | 7/8"X14 | 1.1/16"×12 | 19.3 | 21.9 | 51 | 30 | 152 | ||
H1J-10-16 | 7/8"×14 | 1.5/16"X12 | 19.3 | 23.1 | 53.5 | 36 | 219 | 21 | |
H1J-12 | 1.1/16"X12 | 1.1/16"×12 | 21.9 | 21.9 | 54 | 30 | 175 | ||
H1J-12-14 | 1.1/16"X12 | 1.3/16"X12 | 21.9 | 22.6 | 55.5 | 32 | 203 | ||
H1J-12-16 | 1.1/16"X12 | 1.5/16"×12 | 21.9 | 23.1 | 56.1 | 36 | 236 | ||
H1J-14 | 1.3/16"X12 | 1.3/16"×12 | 22.6 | 22.6 | 56.1 | 32 | 239 | ||
H1J-14-16 | 1.3/16"X12 | 1.5/16"X12 | 22.6 | 23.1 | 56.5 | 36 | 260 | ||
H1J-16 | 1.5/16"X12 | 1.5/16"X12 | 23.1 | 23.1 | 57 | 36 | 257 | ||
H1J-16-20 | 1.5/16"X12 | 1.5/8"X12 | 23.1 | 24.3 | 60.5 | 46 | 384 | 17 | |
H1J-16-24 | 1.5/16"×12 | 1.7/8"×12 | 23.1 | 27.5 | 65.5 | 50 | 497 | 14 | |
H1J-20 | 1.5/8"X12 | 1.5/8"X12 | 24.3 | 24.3 | 62 | 46 | 422 | 17 | |
H1J-20-24 | 1.5/8"X12 | 1.7/8"X12 | 24.3 | 27.5 | 67 | 50 | 523 | 14 | |
H1J-20-32 | 1.5/8"X12 | 2.1/2"X12 | 24.3 | 33.9 | 75 | 65 | 978 | 10.5 | |
H1J-24 | 1.7/8"×12 | 1.7/8"×12 | 27.5 | 27.5 | 70 | 50 | 553 | 14 | |
H1J-24-32 | 1.7/8"X12 | 2.1/2"X12 | 27.5 | 33.9 | 78.5 | 65 | 896 | 10.5 | |
H1J-32 | 2.1/2"X12 | 2.1/2"X12 | 33.9 | 33.9 | 85 | 65 | 1150 | ||
